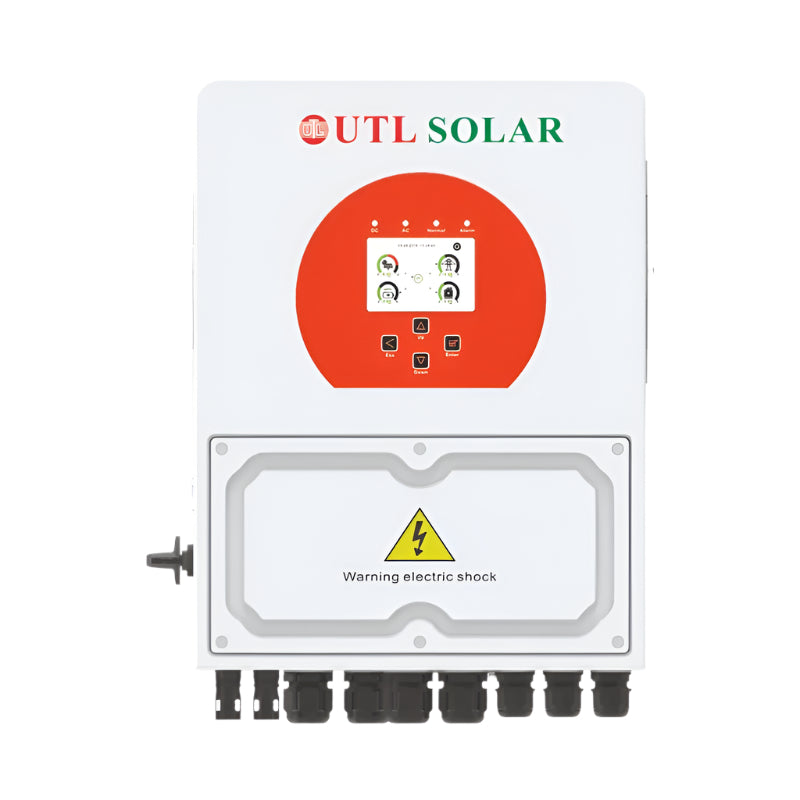

UTL Solar Hybrid Inverter HYB-3.6K-GXLS2 2MPPT Single Phase

UTL Solar Hybrid Inverter HYB-3.6K-GXLS2 2MPPT Single Phase

Rs. 95,999.00
Rs. 155,328.00 Rs. 95,999.00
Sale Sold out
Tax included.
UTL Solar Hybrid Inverter HYB-3.6K-GXLS2 2 MPPT Single Phase - 5 Years Warranty
UTL HYB-3.6K-GXLS2 is a 3.6kVA transformerless hybrid solar inverter, which essentially means it can function as a standard inverter, charge controller, and also manage grid connectivity for exporting surplus solar power. UTL Solar Hybrid Inverter Experience uninterrupted power, smarter energy savings, and complete control with our next-generation Hybrid Inverter series. It offers uninterrupted power by smartly switching between solar, battery, and grid. Whether you’re setting up a new system or upgrading an old one, it works seamlessly saving you money, reducing downtime, and keeping your essentials running without hassle.
  • Warranty: 5 year
  • Smart Load function
  • Overload/over temperature/ short circuit protection
  • Smart battery charger design for optimized battery performance
  • Programmable multiple operation modes: On grid, Off grid and UPS.
  • Programmable supply priority for battery or grid.
  • Smart settable three stages MPPT charging for optimized battery performance.
  • With built-in export limitation function.
  • The system is AC-coupled to retrofit existing solar installations.
  • Up to a max. of 10 units can be connected in parallel for On-Grid installations and upgrades.
  • It supports the parallel operation of multiple batteries.
  • The system is capable of a max. charging and discharging current of 50A.
  • High voltage batteries offer enhanced efficiency.
Product Name: UTL Solar Hybrid Inverter 3.6kw
Brand: UTL
Product Type: Solar Hybrid Inverter
Product Model: HYB-3.6K-GXLS2
Max. DC Input Power (W): 5760
Max. DC Input Voltage(V): 500
Max. DC Input Current (A): 18+18
Rated Output Power(W): 3600
Output Voltage(V): 220/230V
Operating Phase: Single Phase
MPPT: 2
Efficiency: 97.60%
MPPT Efficiency: >99%
Grid Frequency Range: 50/60Hz
Number of Battery Input: 1
Battery Type: Lead acid or Lithium ion Battery
Battery Voltage Range(V): 40-60
Warranty: 5 Years
Dimension: 229(D) x 330(W) x 433(H) mm
Weight: 17 Kg
Country of Origin: India
Packing: Standard Packing
