Spectra Energy
UTL Solar Charge Controller PWM1224 20A LCD
UTL Solar Charge Controller PWM1224 20A LCD
Regular price
Rs. 1,799.00
Regular price
Rs. 2,430.00
Sale price
Rs. 1,799.00
Unit price
per
Tax included.
Couldn't load pickup availability

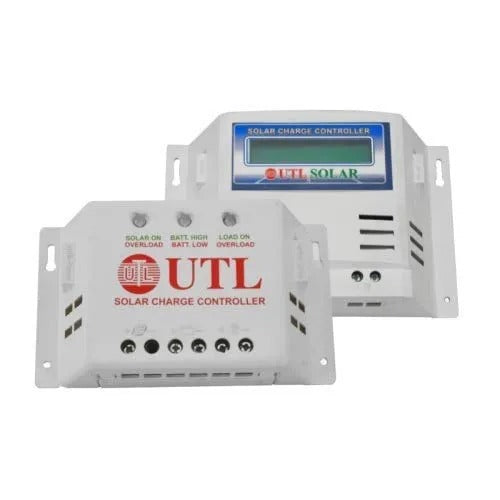

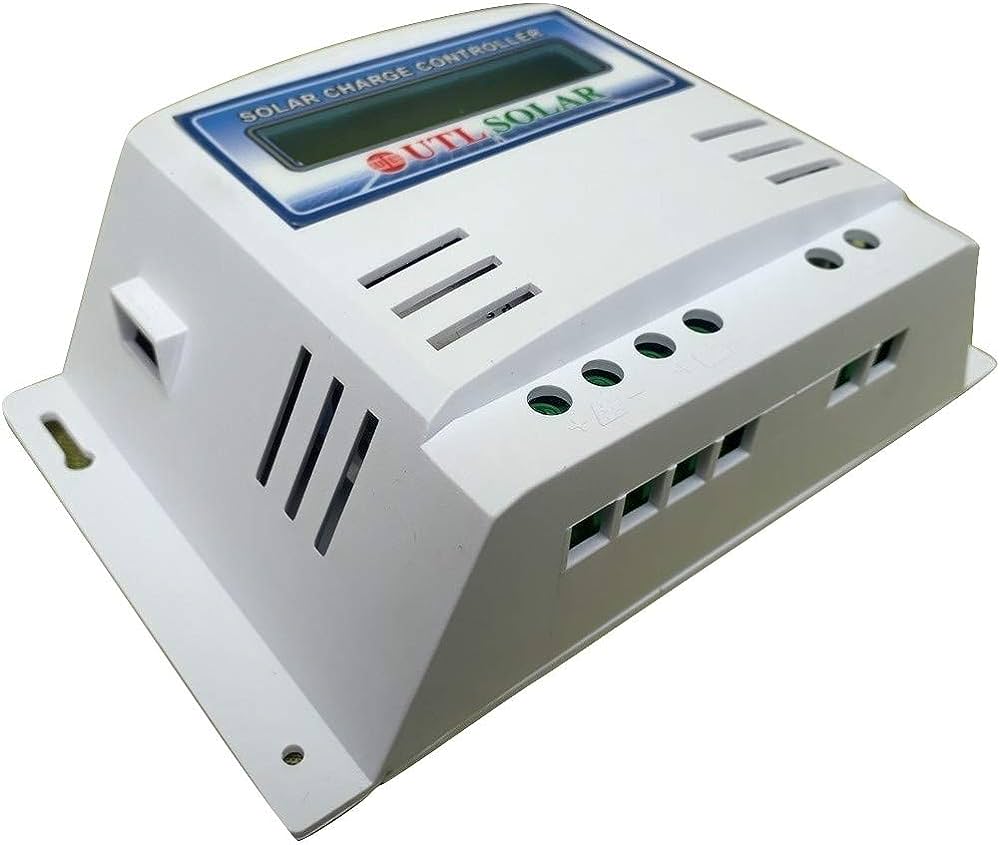

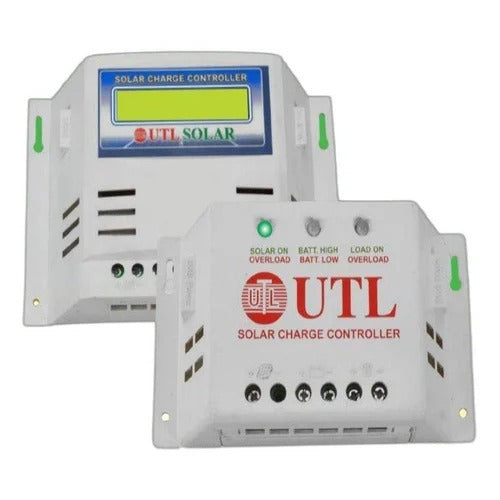

UTL Charge Controller PWM1224 20A - LCD
UTL Solar Charge Controllers are advanced technology and hugely demanded solar products. The use of charge controllers in photovoltaic systems increases the energy harvested significantly. The UTL solar charge controller basically controls the device voltage and opens the circuit, halting the charging, when the battery voltage ascends to a certain level.
- Controller-Based PWM Technology.
- Works Efficiently.
- LCD Indication.
- 95% efficiency
- Overcharging Current Protection.
- Overcharging Voltage Protection.
- Battery Reverse Protection.
- Overload Protection.
- SPV Reverse Polarity Protection.
- Reverse current flow from Battery Solar Array Protection
Product Name: UTL Charge Controller
Brand: UTL
Product Type: Solar Charge Controller
Product Model: PWM 1224
VA Rating: 20A@12v/24v
Charging Current: 20 Amps
Precise: Microcontroller
Operating Temperature: 0-50 °C
Storage Temperature: -20° to 70° C
Input Voltage Range (Voc) @ Startup: 17V±2V, 30V±2V
Warranty: 1 Year (12 months)
Usage/Application: Homes & Small Shops
Dimension: 100 (L) x 161 (W) x 50 (H) mm
Weight: 300 g
Country of Origin: India
Packing: Standard Packing
