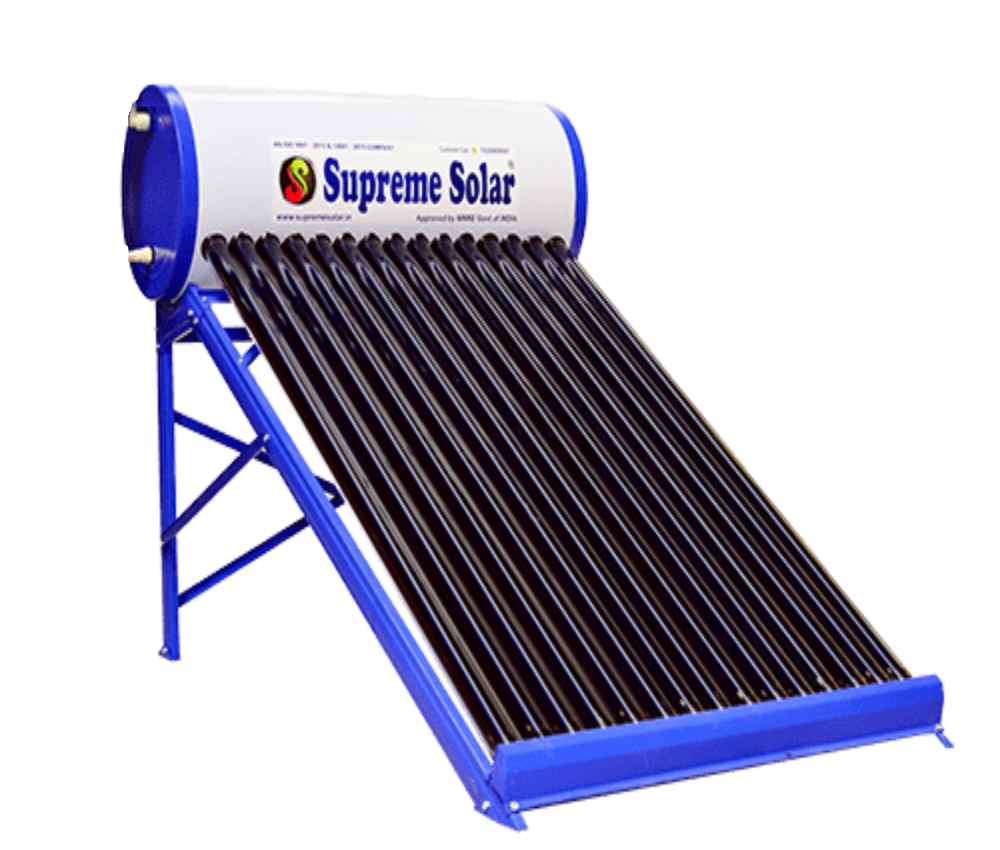

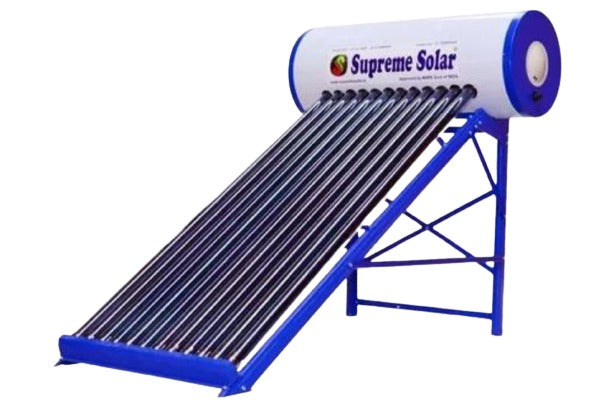

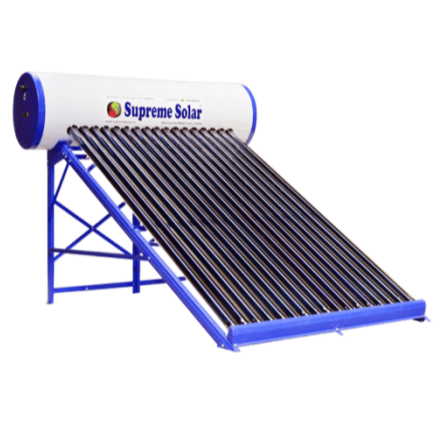

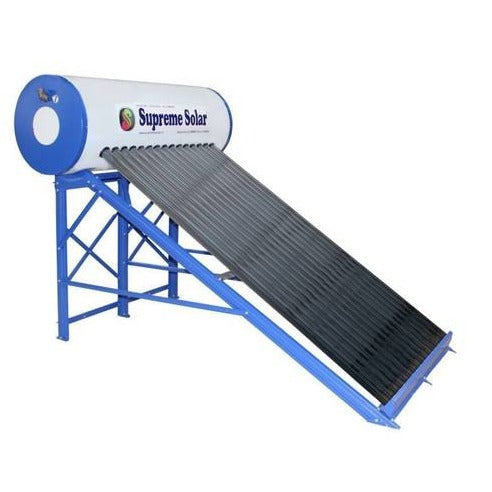

Supreme GL ETC 220 LPD (PC) - Solar Water Heater- 10 Years Guarantee

Supreme Solar, we are working on renewable energy with advanced technology to ensure your solar water heater gives you the maximum benefit. We use PUFF for Supreme Solar 220 GL keeping solar water hot for a long time. Hence the water is clean and hygienic as the tanks are glass enameled coated. The Inner tank of Supreme Solar 220 Liter Glass lined solar Heater models has a glass-lined coating. Supreme ETC solar water systems can be a cost-effective way to get continuous hot water for your home. ETC Solar Water Heaters Systems comes with three-layered evacuated glass tubes that provide insulation and outer wall is coated with high-grade absorption material. By these, the tubes absorb the maximum sunlight even in the cloudy season, results in continuous hot water for your home.

Brand : Supreme

Product Type: Solar Water Heater

Product Model: Glass Lined Evacuated Tube Collector (GL ETC)

Capacity: 220 LPD

220 Liters : Suitable for 5 to 6 persons per day

Vacuum Tube outer diameter : 47 mm / 58 mm

Vacuum Tube inner diameter : 37 mm / 47 mm

Tube Weight: 30 kg (For 220 LPD)

Tube length : 2100 mm

Inner tank material : Enamel Steel of 2mm &2.5 mm with the Glass Lined Coating

Outer tank material : Powder Coated

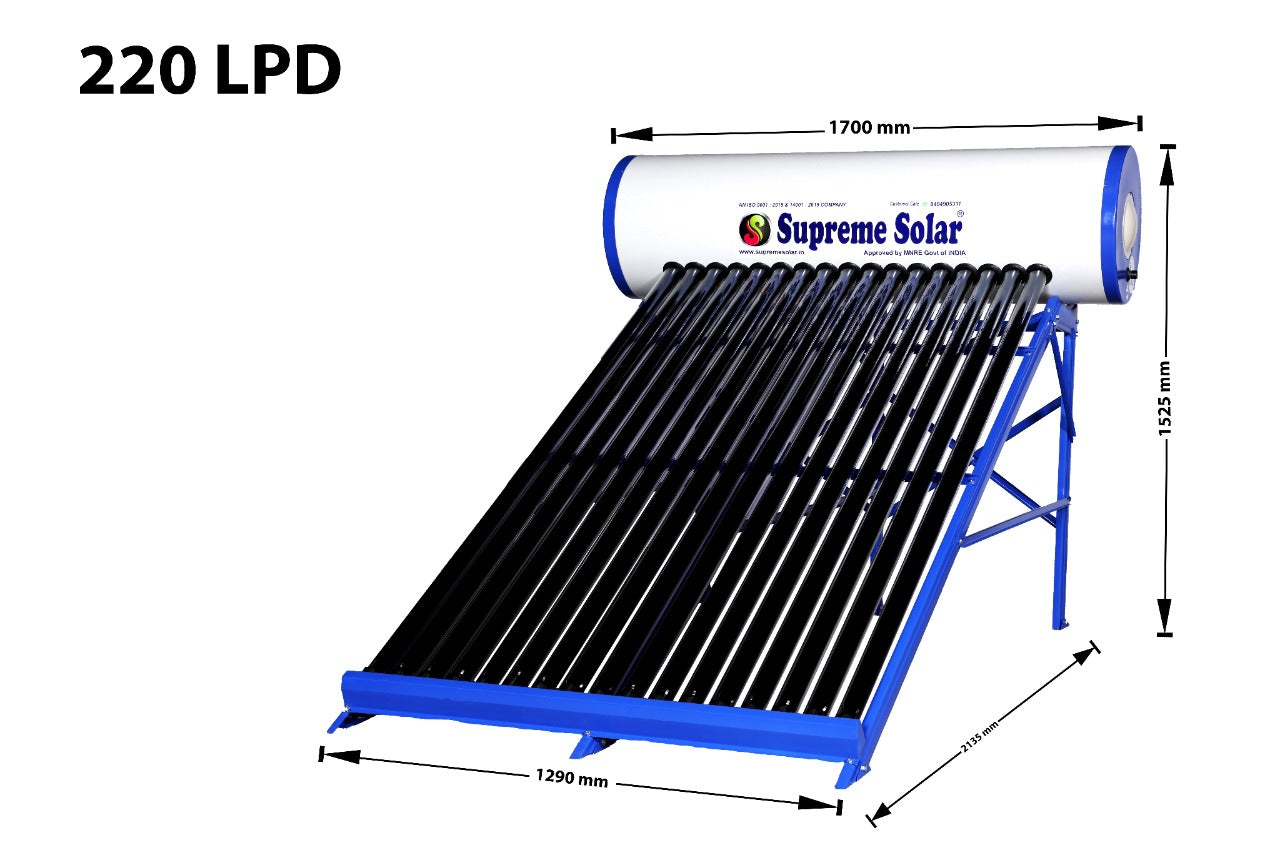

Tank Dimensions : 1480 mm

Inner Tank Diameter : 210 mm

Outer Tank Diameter : 550 mm

Tank Weight: 54.9 kg. (For 220 LPD)

Tank Insulation : 50 mm high-quality PUF materials

Tank Volume : 220 LPD

Inner Dish : 2.5 mm

Outer Dish : Aluminum with Powder Coated

Temperature : 65 degrees C to 85 degrees C

Installation Space Required : 2*2.5 mm (W*L)

Stand Dimensions : 1050*1150*2160 mm (H*W*L)

Stand Weight : 21 kg (For 220 LPD)

Frame Angle : 27 degrees

Guarantee: 10 Years for Tank

Total System Weight: 105 kg

Country of Origin: India

Packing: Standard Packing
