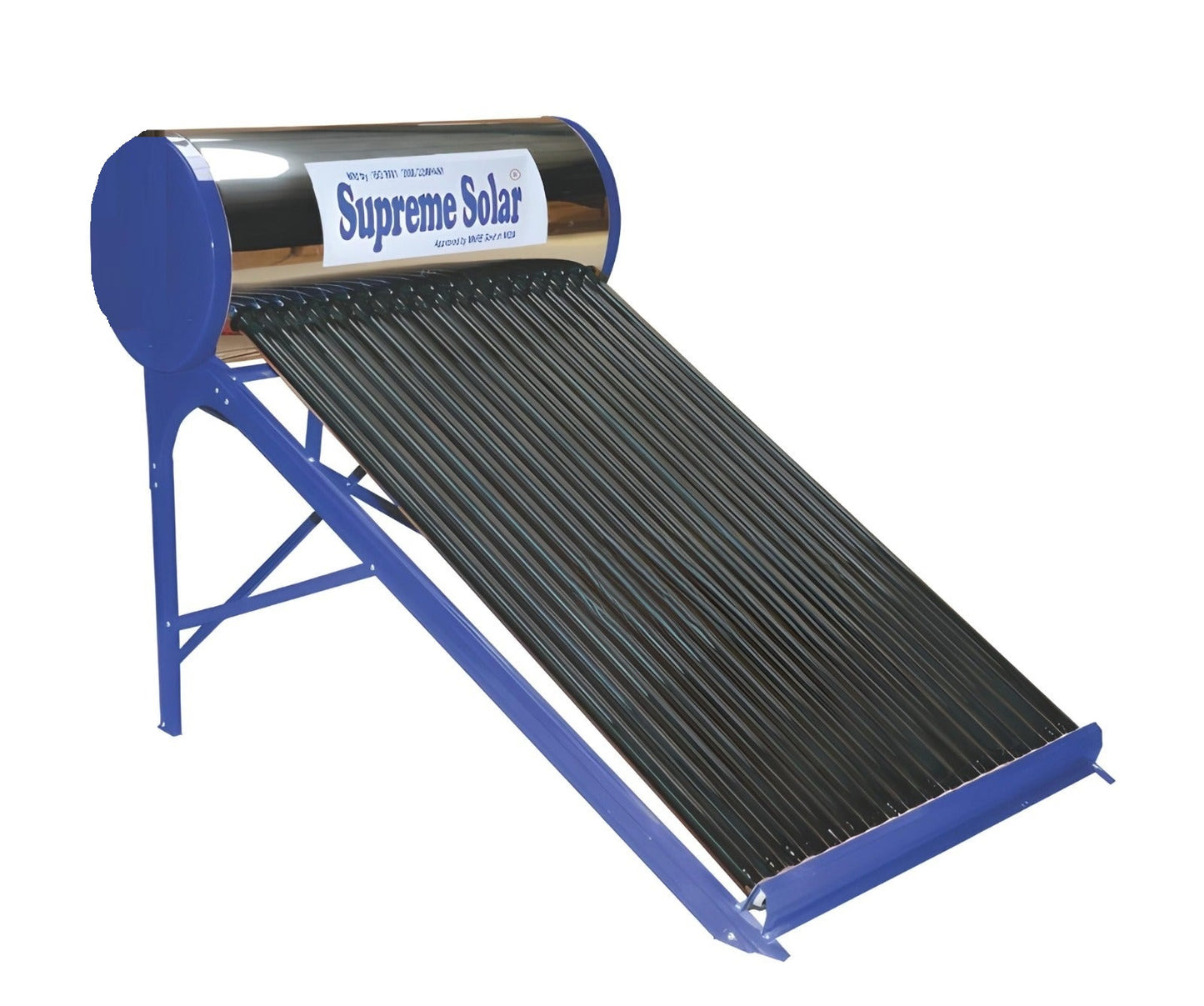

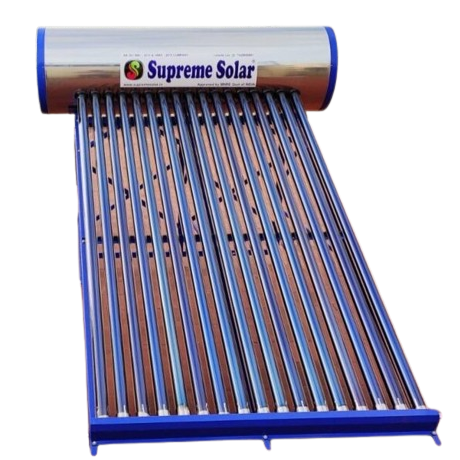

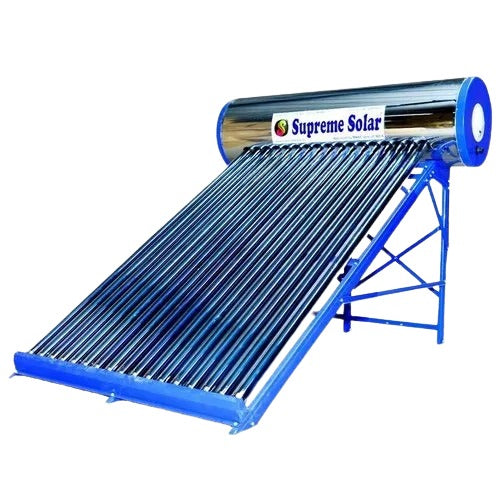

Supreme Solar Water Heater GL ETC 220 LPD Stainless Steel

Supreme Solar Water Heater GL ETC 220 LPD Stainless Steel

Regular price Rs. 51,203.00
Regular price Sale price Rs. 51,203.00
Sale Sold out
Tax included.

Supreme Solar Water Heater GL ETC - Stainless Steel - 10 Years Guarantee
Supreme Solar, we are working on renewable energy with advanced technology to ensure your solar water heater gives you the maximum benefit. We use PUFF for Supreme Solar 220 GL keeping solar water hot for a long time. Hence the water is clean and hygienic as the tanks are glass enameled coated. The Inner tank of Supreme Solar 220 Liter Glass lined solar Heater models has a glass-lined coating. Supreme ETC solar water systems can be a cost-effective way to get continuous hot water for your home. ETC Solar Water Heaters Systems comes with three-layered evacuated glass tubes that provide insulation and outer wall is coated with high-grade absorption material. By these, the tubes absorb the maximum sunlight even in the cloudy season, results in continuous hot water for your home.
  • 10 Years Guarantee for Tank
  • Stainless Steel Outer Tank
  • Glass Lined Inner tank
  • Mild Steel Stand
  • Maintenance free
  • High Efficiency
  • Air vent system to provide max water pressure,
  • Budget friendly solar water heater.
  • No Guarantee: for Glass tubes, Glass panels, pressure relief valve, air relief vales.

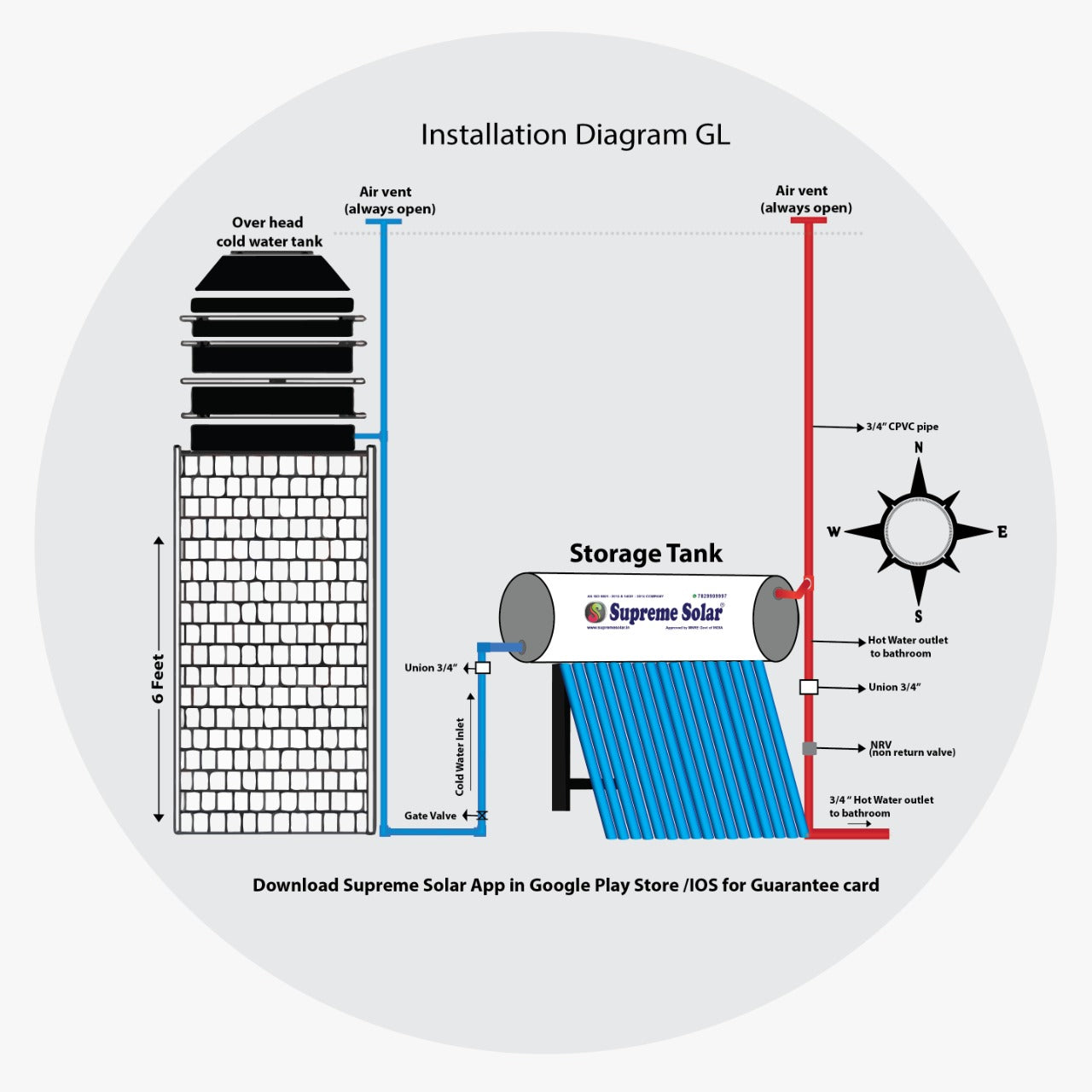

  • Terms and Conditions : Cold water tank height should be minimum 6 feet & maximum 7 feet
Product Name : Supreme GL ETC 220 LPD (SS) - Solar Water Heater
Brand : Supreme
Product Type: Solar Water Heater
Product Model: Glass Lined Evacuated Tube Collector (GL ETC)
Capacity: 220 LPD
No .of Tubes: 21
220 Liters : Suitable for 5 to 6 persons per day
Inner tank material : Enamel Steel of 2mm &2.5 mm with the Glass Lined Coating
Outer tank material : Stainless Steel
Stand Material: Mild Steel

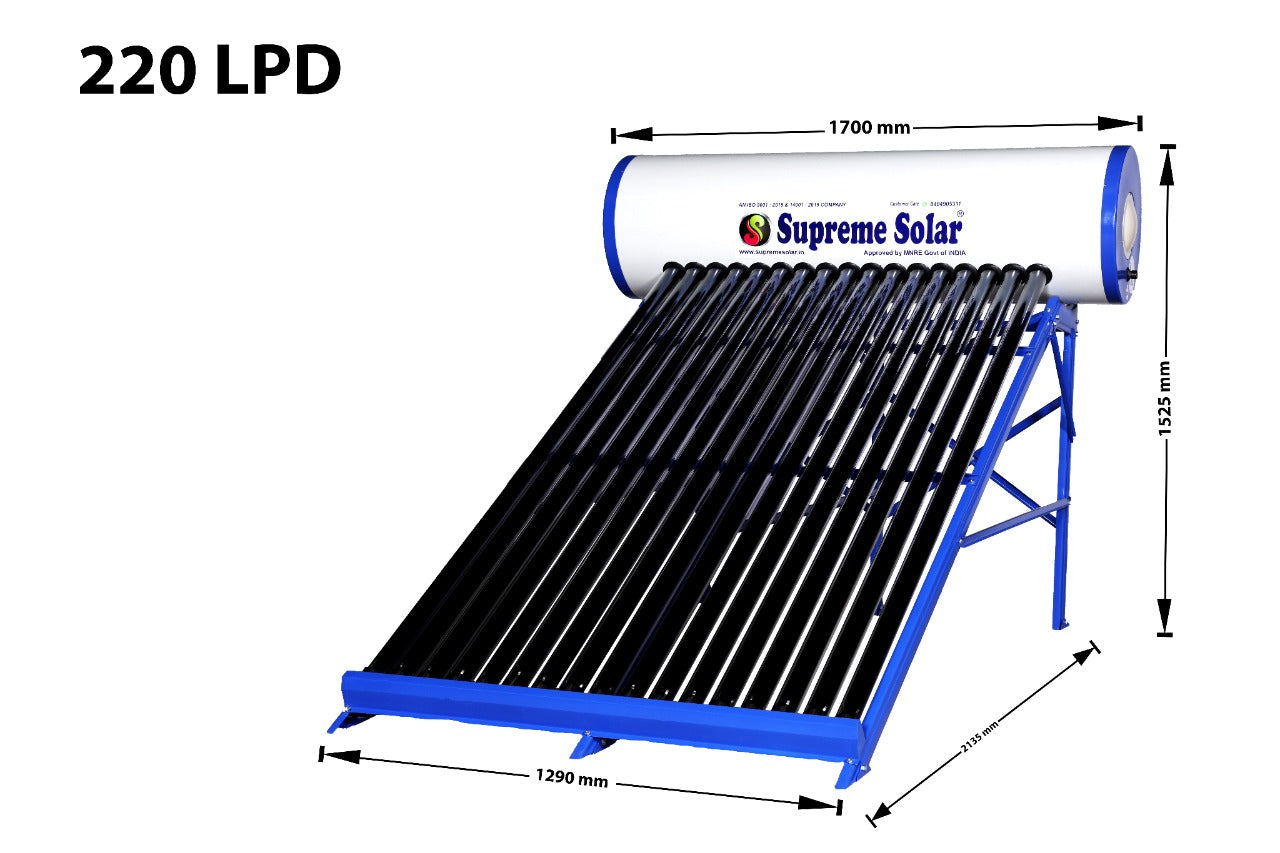

Tank Dimensions : 1480 mm
Inner Tank Diameter : 380 mm
Outer Tank Diameter : 480 mm
Tank Weight: 54.9 kg. (For 220 LPD)
Vacuum Tube outer diameter : 47 mm / 58 mm
Vacuum Tube inner diameter : 37 mm / 47 mm
Tube Weight: 30 kg (For 220 LPD)
Tube length : 2100 mm
Tank Insulation : 50 mm high-quality PUF materials
Tank Volume : 220 LPD
Inner Dish : 2.5 mm
Inner Tank Thickness: 1.8 mm (shell) and 2.5 mm (dish) Cold Roald Cold Annealed
Glass Thickness: 1.6mm
Temperature : 65 degrees C to 85 degrees C
Installation Space Required : 2*2.5 mm (W*L)
Stand Dimensions : 1050*1150*2160 mm (H*W*L)
Stand Weight : 21 kg (For 220 LPD)
Frame Angle : 27 degrees
Guarantee: 10 Years for Tank
Total System Weight: 105 kg
Electrical Back Up : Copper Heating Element
Electrical Back Up: 2 KW/ 3 KW (optional)
Country of Origin: India
Packing: Standard Packing
