Sungrow
Sungrow On-Grid Inverter 150 kW Three Phase – 8 Years Warranty
Sungrow On-Grid Inverter 150 kW Three Phase – 8 Years Warranty
Regular price
Rs. 421,199.00
Regular price
Sale price
Rs. 421,199.00
Unit price
per
Tax included.
Couldn't load pickup availability

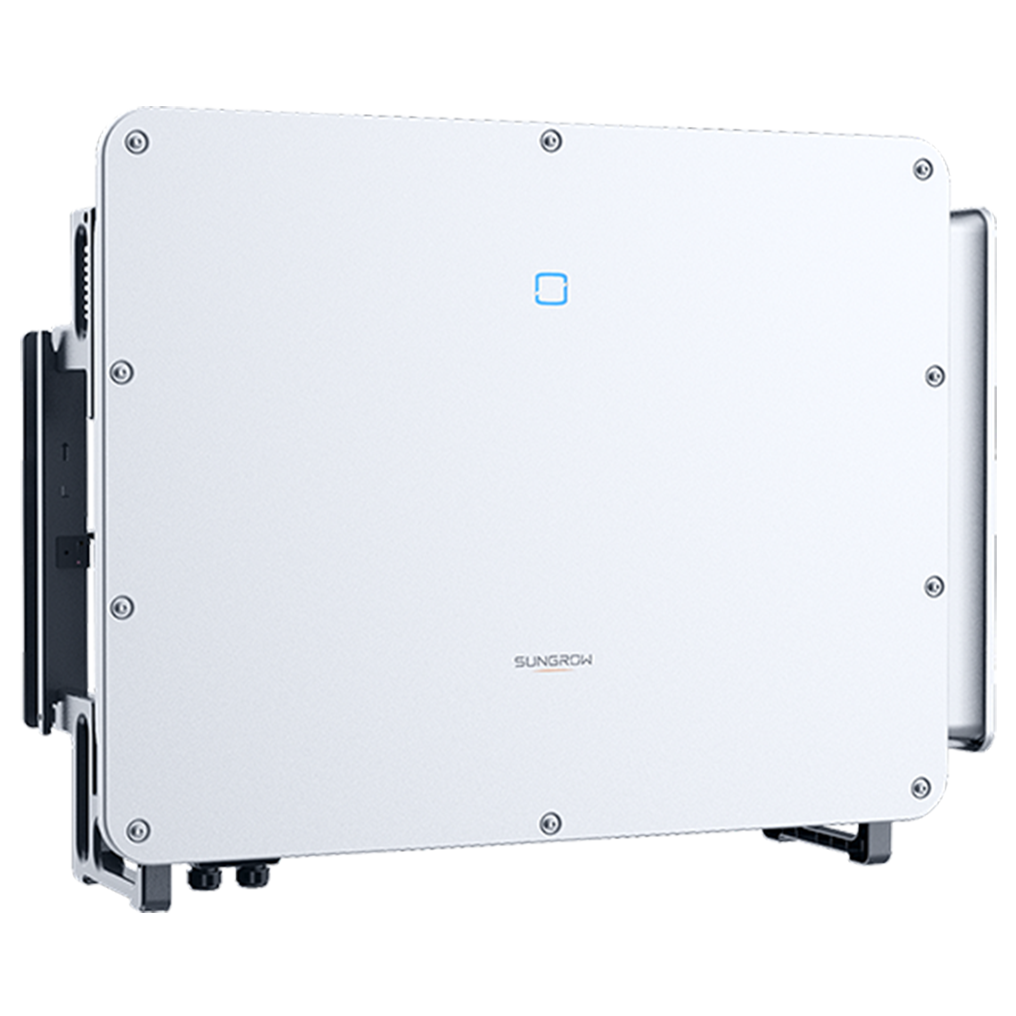

Sungrow On-Grid Solar Inverter 150 kW Three Phase (7MPPT)
Sungrow On-Grid Solar Inverter 150 kW Three Phase 7 MPPT, Model SG150CX, designed for grid-connected commercial and utility solar applications. This inverter delivers power directly to the load during the daytime, and excess electricity is injected into the grid.
- Warranty: 8 Years
- 7 MPPT, max. efficiency up to 98.8%
- Recommended max. PV power: 210 kWp
- Max. PV input voltage: 1,100 V
- MPPT voltage range: 180–1,000 V
- Communication: RS485, WLAN/Ethernet optional
- IP66 / C5 corrosion protection for outdoor installation
Product Name: Sungrow On-Grid Solar Inverter 150 kW
Brand: Sungrow
Product Type: On-Grid Solar Inverter
Product Model: SG150CX
Max. DC Input Voltage (V): 1100
Max. DC Input Current (A): 336 (48A × 7)
Rated Output Power (kW): 150
Max. Apparent Power (kVA): 165
Operating Phase: Three Phase
MPPT: 7
Efficiency: 98.8%
European Efficiency: 98.2–98.4%
MPPT Voltage Range: 180–1,000 V
Grid Frequency Range: 50/60 Hz
Warranty: 8 Years
Dimension: 1025 (L) x 795 (W) x 360 (H) mm
Weight: ≤100 kg
IP Rating: IP66
Packing: Standard Packing
