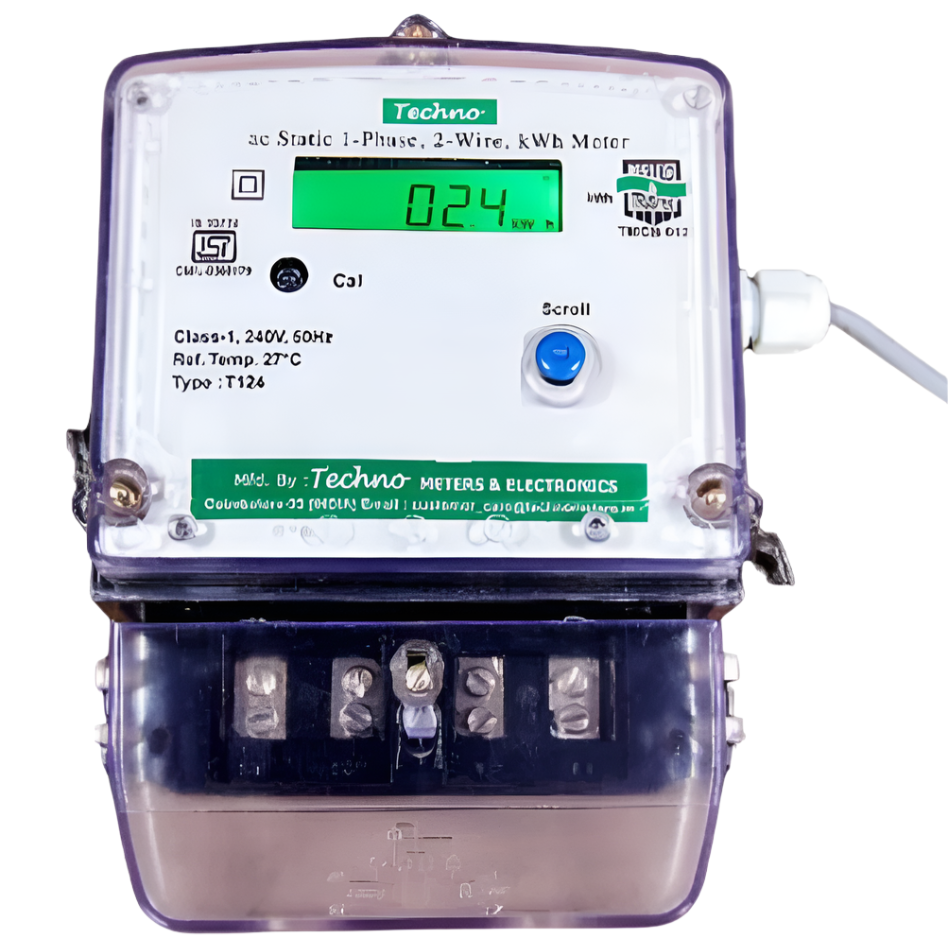

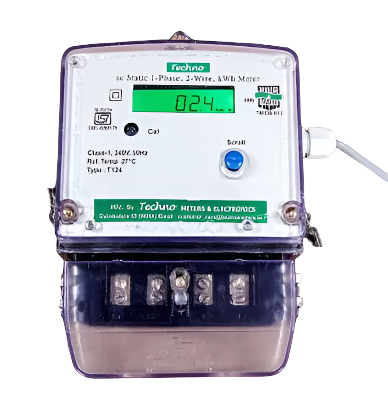

Single Phase Smart Meter Electronic Energy Meter (With LCD)
The Energy Meter which is used for measuring the energy utilized by the electric load is known as the Energy monitor. The energy is the total power consumed and utilized by the load at a particular interval of time. Latest ASIC and Micro controller based digital technology. Low power consumption less than 1 watt. Meter records correct energy with same accuracy under reverse current connection. Meter works accurately under earth load condition. LED′s indication for current reversal and earth load tampering. Meter data download through optical communication. Immune to effects of external magnetic field as per IS : 13779
  • Bi-Directional
  • With RS 485 Modbus/232 Port
  • Dual Source
  • Lora Enable
  • Direct or CT-operated
  • ON/OFF Relay

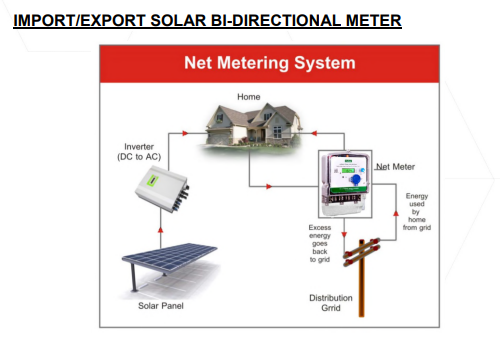

  • Import/Export for solar System
  • Parameters: Kwh, V, A, Anti-Tampering Features: Current Reversal, Earth Load Standards,ect.
Product Name: Smart Meter Single Phase
Product Type: Energy Meter
Product Model: TMCB 012
Phase: Single Phase
Wire: Two Wire
Class: 1.0
Frequency: 50Hz
Voltage: 240V
Current Rating: 2.5-10A,5-20A, 5-30A, 10-40A, 10-60A
Display type: LCD
Applicable: IS 13779
Warranty: 1 Year
Application: Indoor/Outdoor
Country of Origin: India
Packing: Standard Packing
