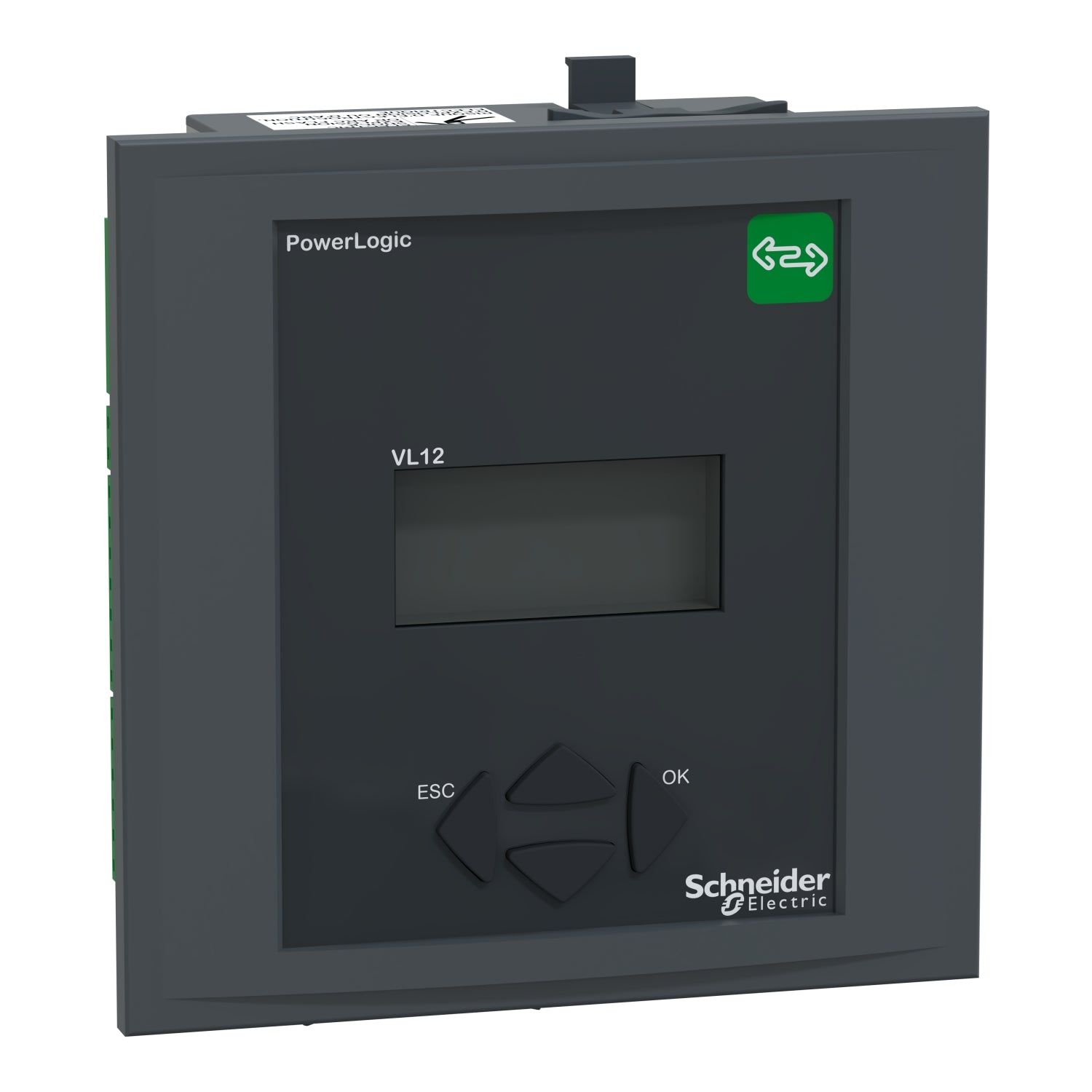

Schneider Electric VarPlus Logic VPL12 12-step APFC relay – VPL12N
Schneider Electric VarPlus Logic VPL12 12-step APFC relay – VPL12N
Regular price
Rs. 62,355.00
Regular price
Sale price
Rs. 62,355.00
Unit price
per
Tax included.
Couldn't load pickup availability
Schneider Electric VarPlus Logic VPL12 12-step APFC relay is listed by Solar World, a Spectra Energy Services business, for customers in India.
Online SKU: VPL12N
Catalog reference: VPL12N
Range: VarPlus Logic
Key specifications
- 12-step
- LCD
- 90-550V
- 1A/5A
- RS485
Suitable buyers
Panel builders, APFC integrators.
View the official Schneider Electric product catalogue for VPL12N
Product selection and installation should be confirmed by a qualified electrical professional against the latest manufacturer documentation and project requirements.
| Specification | |
| Range | PowerLogic |
| Product name | PowerLogic PFC Controller |
| Product or component type | Power factor controller |
| Device short name | VPL12 |
| Number of step output contacts | 12 |
| [Us] rated supply voltage | 90...550 V AC <= 999 kV AC with external VT |
| Measurement current | 0…5 A |
| Measurement voltage | 90…550 V AC 50/60 Hz |
| Operating mode | Manual or automatic |
| Number of quadrant operation for generator application | 4 |
| Device connection | Communication protocol: Modbus interface: RS485 |
| Input function | Switch: 1 x dry contact |
| Colour code | Front: dark grey RAL 7016 |
| Display type | Backlit LCD |
| Display size | 56 x 25 mm |
| Function available | Manual programming Automatic initialisation Automatic detection Advanced programming (expert) Any step sequence |
| Metering type | Power factor and displacement PF (signed, four quadrant) Total current harmonic distortion THD (I) Power factor average over lifetime Temperature maximum Phase current I1, I2, I3 RMS on load Active power P, P1, P2, P3 on load Reactive power Q, Q1, Q2, Q3 on load Apparent power S, S1, S2, S3 on load Voltage U21, U32, U13, V1, V2, V3 on load |
| Type of measurement | Capacitor current overload Irms/I1 Individual voltage harmonic Power factor Operating time Cos φ Ambient temperature inside the cubicle Tan φ |
| Information displayed | Number of switching cycles per step Individual step size in kVAr Remaining step capacity in % |
| Type of alarms | Step power loss (< 75 %) / Action: message and alarm contact + step blocked Step faulty / Action: message and alarm contact + step blocked High current (> 6 A CT) / Action: message and alarm contact Hunting (unstable regulation) / Action: message and alarm contact + step blocked Low current (< 15 mA CT) / Action: message and alarm contact Overcompensation / Action: message and alarm contact Capacitor current overload (Irms/I1) (> 130 % I1) / Action: message and alarm contact + step switched off Overtemperature (50 °C) / Action: message and alarm contact + step switched off Overtemperature (30 °C) / Action: fan switch Overvoltage (+/- 10 %) / Action: message and alarm contact + control stopped Total harmonic distortion (> 7 %) / Action: message and alarm contact + step switched off |
| Data recording | 5 alarms |
| Operational Hours alarm | 100000 h without maintenance |
| Operational counter alarm | 65000 cycles without maintenance |
| Input type | Phase to phase Phase to neutral Insensitive to CT polarity Insensitive to phase rotation polarity Current input CT...X/5 A and X/1 A |
| Output type | Control relay: 0.2 A 110 V DC Control relay: 1 A 48 V DC Control relay: 2 A 400 V AC 50/60 Hz Control relay: 1 A 24 V DC Control relay: 5 A 250 V AC 50/60 Hz Control relay: 5 A 120 V AC 50/60 Hz Fan: 5 A 250 V AC 50/60 Hz Fan: 1 A 48 V DC Alarm relay: 5 A 250 V AC 50/60 Hz Alarm relay: 1 A 48 V DC |
| Maximum at the common terminal | 10 A |
| Settings operating mode | Automatic Manual |
| Type of setting | Choice of stepping programs: auto Choice of stepping programs: LIFO Choice of stepping programs: linear Delay between 2 successive switch on the same step: 5...1200 s Step configuration programming: auto Step configuration programming: off Step configuration programming: fixed Target cos phi: 0.7 inductive...0.7 capacitive Target cos phi: dual cos φ |
| Measurement accuracy | Voltage +/- 1 % Current +/- 1 % Frequency +/- 1 % Energy (P,Q,S) +/- 2 % Cos φ +/- 2 % Total voltage harmonic distortion THD (U) +/- 2 % Individual voltage harmonic +/- 3 % Temperature +/- 3 °C |
| Time delay range | 1...6500 s (on reconnection) 1...6500 s (on response) |
| Provided equipment | User manual |
| Mounting mode | Flush-mounted |
| Mounting support | Panel - thickness: 1…3 mm |
| Mounting location | In cabinet |
| Cut-out dimensions | 138 x 138 mm |
| Height | 144 mm |
| Width | 144 mm |
| Depth | 58 mm |
| Product weight | 0.6 kg |
| Compatibility code | VPL 12 |
| Standards | IEC 61000-6-4 UL 61010-1 EN 61010-1 IEC 61000-6-2 IEC 61326-1 |
| Product certifications | EAC NRTL cNRTL CE |
| IP degree of protection | Front face: IP41 Rear face: IP20 |
| Operating altitude | <= 2000 m |
| Ambient air temperature for operation | -20…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.200 cm |
| Package 1 Width | 17.700 cm |
| Package 1 Length | 18.400 cm |
| Package 1 Weight | 727.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 6.155 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 64 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 58.408 kg |
| Contractual warranty | |
| Warranty (in months) | 18 |
