Schneider Electric TeSys Deca thermal overload relay 16-24A – LRD22

Schneider Electric TeSys Deca thermal overload relay 16-24A – LRD22

More Information: Download Datasheet

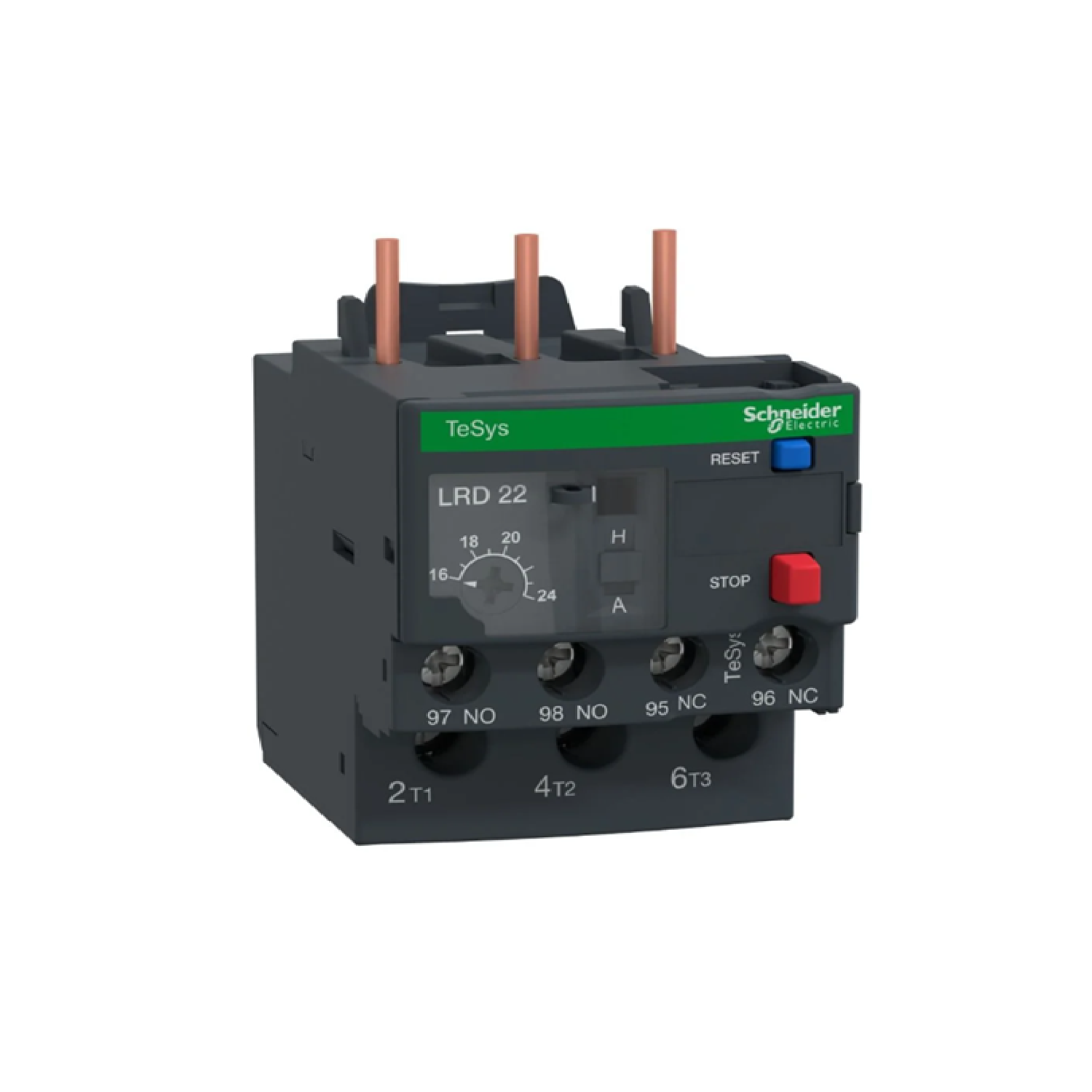

Schneider Electric TeSys Deca thermal overload relay 16-24A is listed by Solar World, a Spectra Energy Services business, for customers in India. TeSys LRD thermal overload relay, 24A/690V, thermal setting range 16-24A, tripping class 10A, for protection of 3-phase motors 11kW@400V. Differential device with phase failure and load imbalance detection. It provides a thermal adjustment dial, a manual-automatic reset selector, a test selector for simulation of tripping, reset, and stop buttons, a flag indicator, and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals: it connects directly to the bottom terminals of 3-pole contactors LC1D25-D38. Mounting on a DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi-standard certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).

Product Code: LRD22
Range: TeSys Deca
