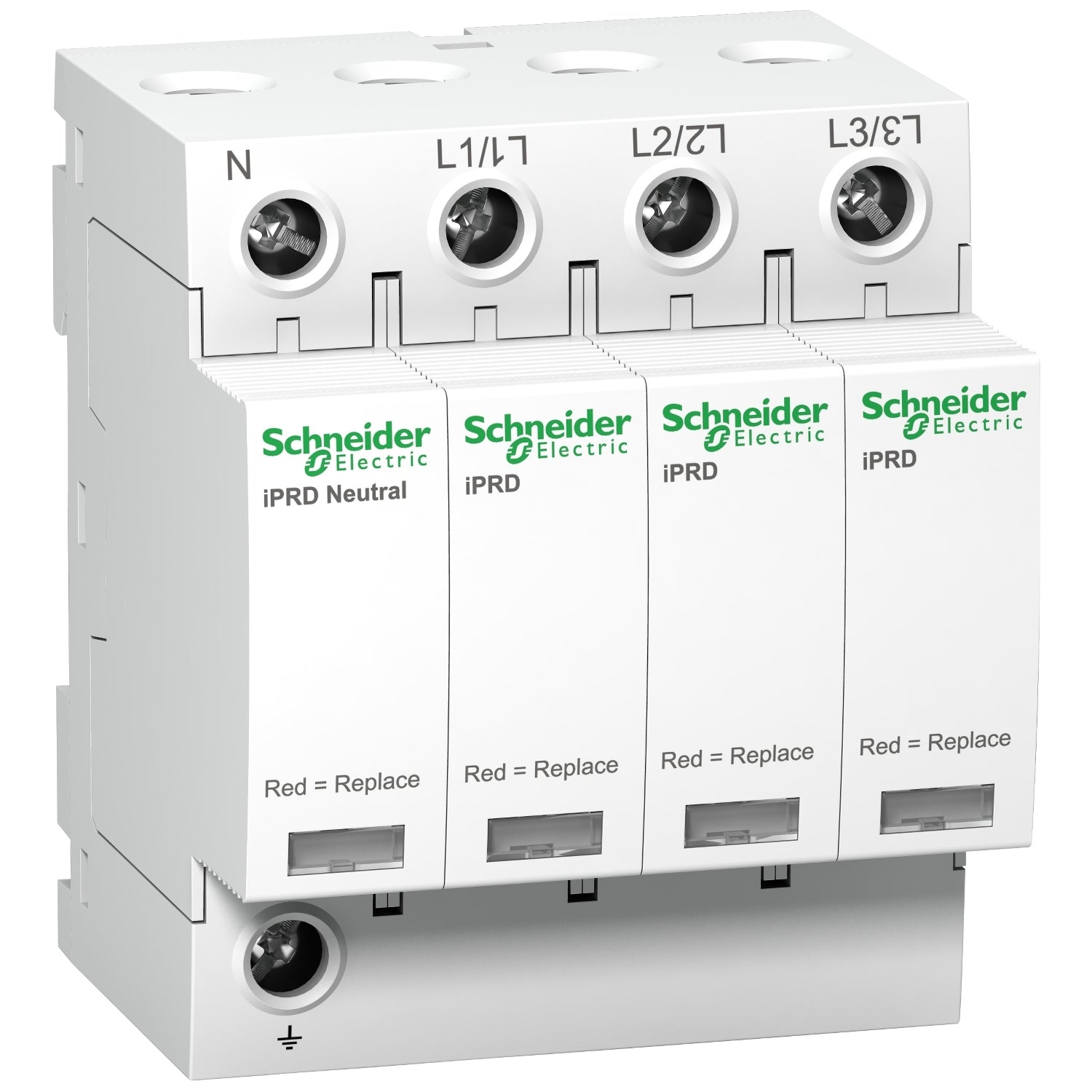

Schneider Electric Acti9 iPRD20 Type 2 SPD 3P+N – A9L20600

Schneider Electric Acti9 iPRD20 Modular Surge Arrester Type 2 SPD 3P+N – A9L20600

More Information Download Datasheet

Schneider Electric Acti9 iPRD20 Type 2 SPD 3P+N is listed by Solar World, a Spectra Energy Services business, for customers in India. This Acti9 iPRD20 surge arrester protects 3P+N installations. This Acti9 iPRD20 is compatible with the TT and TN-S earthing systems. The Imax-rated discharge current is 20 kA. The nominal discharge current is 5 kA. The Uc maximum continuous operating voltage in common mode is 260VAC between neutral and earth and 350VAC between phase and earth. The degree of protection is IP20 and IP40 in the modular enclosure. Type 2 20 kA surge arrester according to IEC 61643-11:2011 and EN 61643-11:2012 standards, Suitable for TT and TN-S networks with high prospective short-circuit fault currents, Easy to replace withdrawable cartridges, and pluggable with anti-vibration lock.

Product Code: A9L20600
Range: Acti9 iPRD
