R STAHL Ex Lighting Fixtures – Explosion Proof Industrial Emergency Lighting Linear luminaire With LED - 6209/1143-0201-162-2220-22-75711

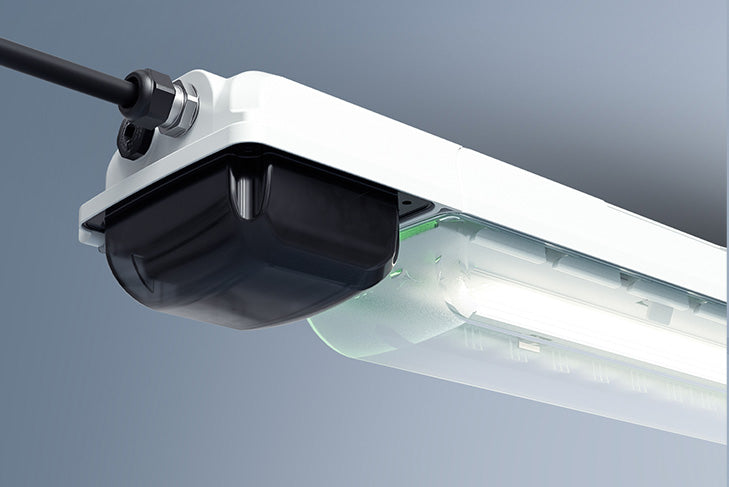

R STAHL Ex Lighting Fixtures - Explosion-Proof EXLUX Emergency Linear Luminaire with LED, 5700 K – cool white; 5999lm, Drilled holes: 3 x M20, Size: 4, Zone - 6209/1143-0201-162-2220-22-75711 Em.Zn1, Art. No.: 342119

More Information Download Catalog

The emergency luminaire with Series 6209/1 LED and integrated battery can be installed in standby switching, continuous mode, or switchable standby switching. A monthly functional test and annual rated operating time test are performed automatically. The results are indicated by an LED.

Key Features

• Smart Central Locking System – Allows effortless access for quick maintenance, minimizing downtime and enhancing operational efficiency.
• Wide Voltage of 100 to 277 V AC—Makes the light fixtures suitable for different applications & environments.
• Advanced Surge Protection up to 6KV—Engineered for resilience, the robust design shields the luminaire from electrical surges, ensuring long-lasting performance.
• Emergency Light Output - Ensures essential visibility during evacuation or system restoration.
  i. 2 ft model: Up to 65% brightness for 1.5 h or 35% for 3 h.
  ii. 4 ft model: Up to 35% brightness for 1.5h or 20% for 3h.
• Long-Lasting LED Performance—Designed for durability, the luminaire delivers over 100,000 hours (L70B50) of service life even in +55°C ambient conditions.

Technical Specifications

Explosion Protection:

• Application range (zones): 1, 2, 21, 22
• IECEx dust certificate: IECEx EPS 25.0020X
• IECEx gas certificate: IECEx EPS 25.0020X
• Ex version: Yes
• IECEx gas explosion protection: Ex db eb ib mb IIC T4
• IECEx dust explosion protection: Ex tb IIIC T80 °C Db
• Certificates: IECEx (BVIS)

Electrical Data:

• Control gear service life: C10 ≥ 50 h, Ta ≤ 60 °C
• LED service life: L70B50: 100,000 h
• Battery version: NiCd battery, gas-tight
• Battery operating voltage: 7.20 V
• Battery capacity: 5.0
• Self-test function: With (standard)

Lighting Data:

• Operating time: 3h emergency lighting operation
• Number of lamps: 1
• Lamp wattage: 50 W
• Lamp: LED
• Light colour: 5700 K – cool white
• Light distribution: 120°x120° with diffusing glass
• Luminaire efficacy: 120 lm/W
• Luminous flux: 5999 lm
• Colour rendering: ≥ 70
• Colour temperature: 5700 K
• Emergency light output: 25% – 3.0 h

Mechanical Data:

• Version: Standard
• IP degree of protection (IEC 60598): IP66/IP67
• Enclosure material: Polyester resin, glass fiber reinforced
• Enclosure colour: Light grey (RAL 7035)
• Diffuser: With diffuser
• Sealing material: Silicone
• Silicone-free content: Contains silicone
• Translucent cover material: Polycarbonate
• Installed terminal strip: PE + N + L1 + L2 + L3
• Max. solid connection terminals: 6 mm²
• Max. finely stranded connection terminals: 4 mm²
• Type of connection cable: Finely stranded Solid
• Translucent Cover: Clear
• Size: 4
• Width: 184 mm
• Height: 125 mm
• Length: 1310 mm
• Impact strength (IEC 62262): IK10
• Disconnection of the luminaire: Only Battery
• Weight: 9 kg
• Weight: 19.84 lb

Components:

• Threaded plate: 2x stainless steel
• Ballast: 6049/111-110-10 + 6246/111-1
• Through wiring: With 6 conductors, 2.5 mm²
• Drilled holes: 3 x M20
• Cable glands and entries: can be ordered as an accessory
• Stopping plugs: Can be ordered as accessories
• Accessories: without
