R STAHL Control device system - 130679 - 8040/1180X-10L07SA05

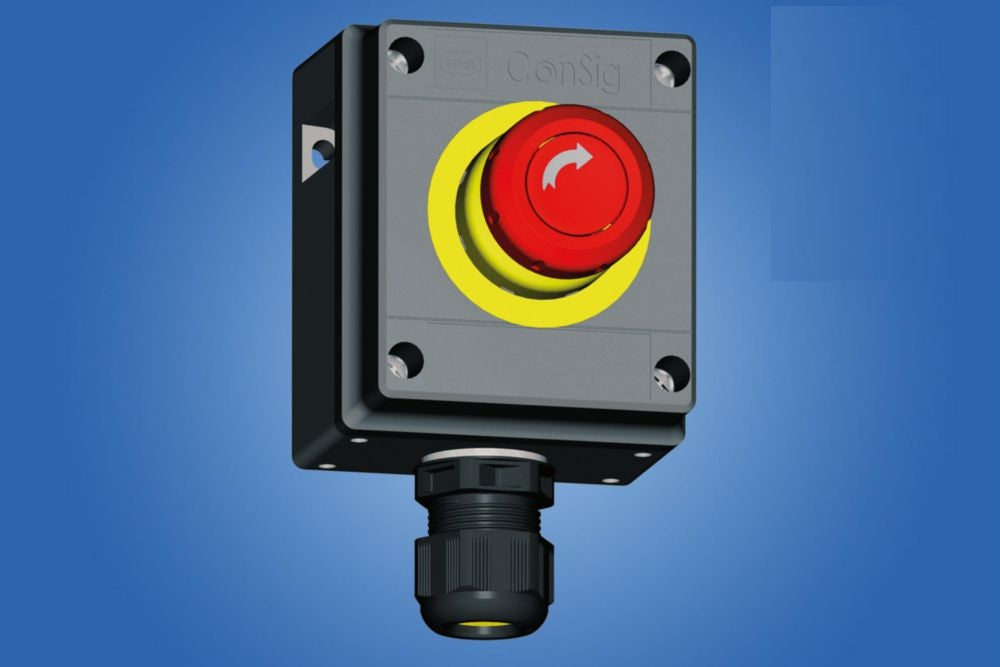

R STAHL Control device system 8040/1180X-10L07SA05, Mushroom stay-put button, Installation position middle: EM-STOP mush. stay-put button, Red – (rotating arrow), Contact element NC/NO, Zone 1, 2, 21, 22  Art. No.: 130679

More Information Download Catalog

With the R. STAHL Series 8040 control device system, you can get a clear overview of the control devices. The three combinable sizes and the modular design offer flexibility. You can choose from one standard version and customised variants

• Product variant: Mushroom stay-put button
• Product Type: 8040/1180X-10L07SA05

Key Features

• Flexible: Modular design and three sizes make customer-specific versions possible
• Lightweight enclosure made of glass fiber-reinforced polyester resin (GRP), suitable for the marine industry and offshore
  applications

Technical Specifications

Explosion Protection:

• Application range (zones): 1, 2, 21, 22
• IECEx gas explosion protection: Ex db eb IIC T6 / T5 Gb
• IECEx dust explosion protection: Ex tb IIIC T80 °C / T95 °C Db
• ATEX gas explosion protection: Ex II 2 G Ex db eb IIC T6 / T5 Gb
• ATEX dust explosion protection: Ex II 2 D Ex tb IIIC T80 °C / T95 °C Db
• IECEx gas certificate: IECEx PTB 06.0025
• IECEx dust certificate: PTB 01 ATEX 1105
• ATEX dust certificate: PTB 01 ATEX 1105
• ATEX gas certificate: PTB 01 ATEX 1105
• Certificates: ATEX (PTB), Brazil (ULB), Canada (UL), China (NEPSI), IECEx (PTB), India (PESO), Korea (KGS), Taiwan (ITRI), USA (UL)
• Explosion protection note: Product label may vary. Series devices are labelled with ATEX and IECEx.

Electrical Data:

• Rated operational voltage AC: 550 V
• Rated operational current: 10 A (T6)

Ambient Conditions:

• Ambient temperature: -76 °F ... 104 °F (T6),  -76 °F ... +131 °F (T5)
• Ambient temperature: -60 °C ... 40 °C (T6), -60 °C ... 55 °C (T5)

Mechanical Data:

• IP degree of protection (IEC 60529): IP66
• Enclosure material: Polyamide, glass fiber reinforced
• Enclosure Colour: Dark Grey
• Silicone-free: No
• Connection cross-section max.: 2.50 mm²
• Solid connection cross section: 0.32 - 2.50 mm²
• Connection cross-section AWG single-stranded: 22 AWG ... 14 AWG
• Finely Stranded connection cross-section: 0.32 - 2.50 mm²
• Finely Stranded connection cross-section AWG: 22 AWG ... 14 AWG
• Cover fixing type: With captive screws, M4 stainless steel screws

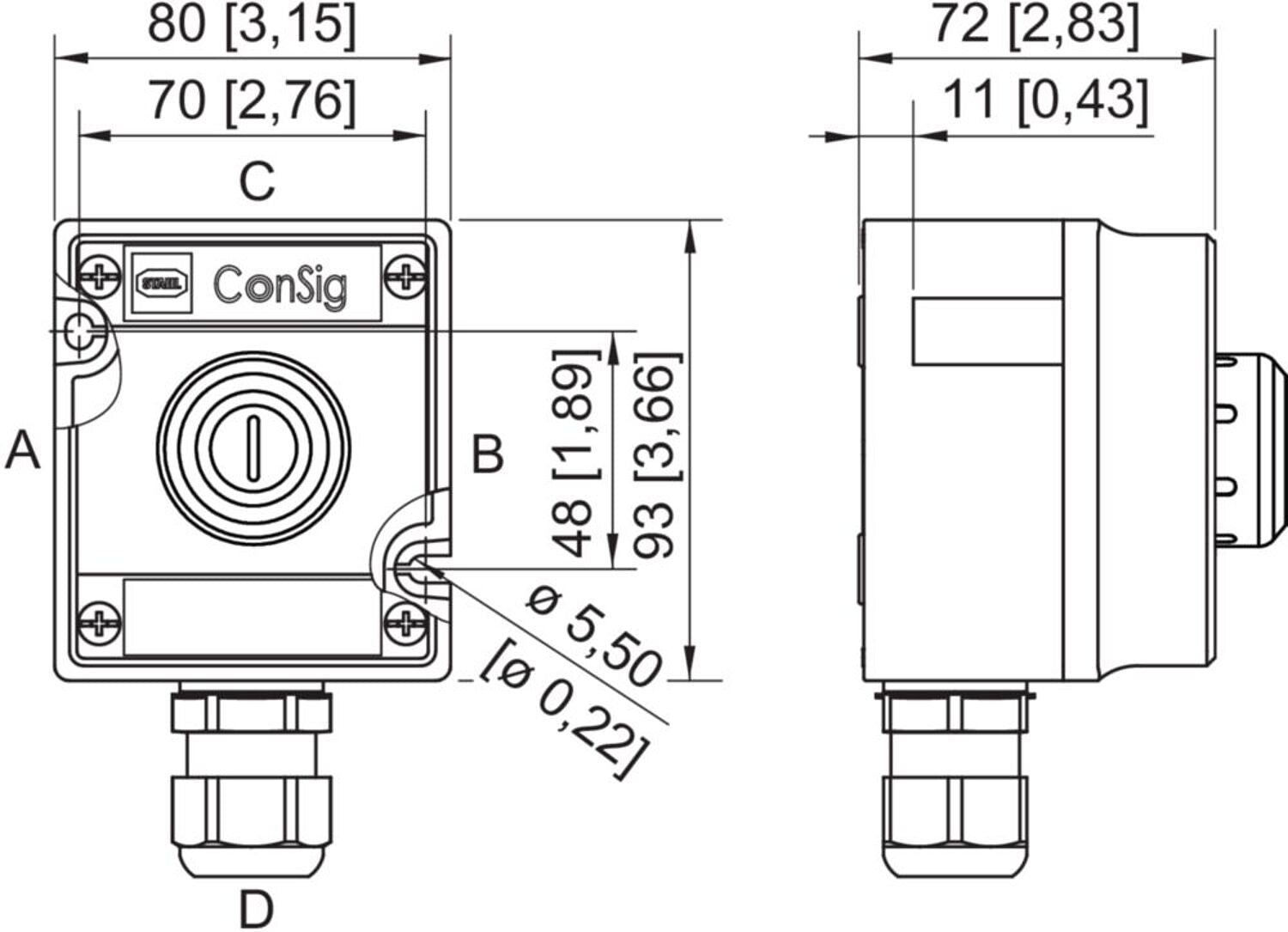

• Width: 80 mm
• Width, inches: 3.150 in
• Height: 93 mm
• Height in inches: 3.6600 in
• Depth: 72 mm
• Depth in inches: 2.760 in
• Seal: Silicone, foamed
• Weight: 400 g

Mounting / Installation:

• Tightening torque of cover screw 1: 1.40
• Tightening torque of cover screw 1 lbf in: 12.4 lbf in

Components:

• Installation position middle: EM-STOP mush. stay-put button, Red – (rotating arrow)
• Built-in element middle: Contact element NC/NO
• Flange and plates: Without flange, without plates
• Cable glands and entries: 1 x M25 Ø 7 ... 17 mm
• Entry type: Standard 8161, moulded material
• Entry 1: 1 x 8161/7-M25-1707-LT
• Entry 1 type: Polyamide cable gland, black
• Entry 1: M25 x 1.5
• Entry 1 clamping range:    7 - 17 mm
• Entry 1 clamping range, inch: 0.28 - 0.67 in
• Metal entry possible 1: No
