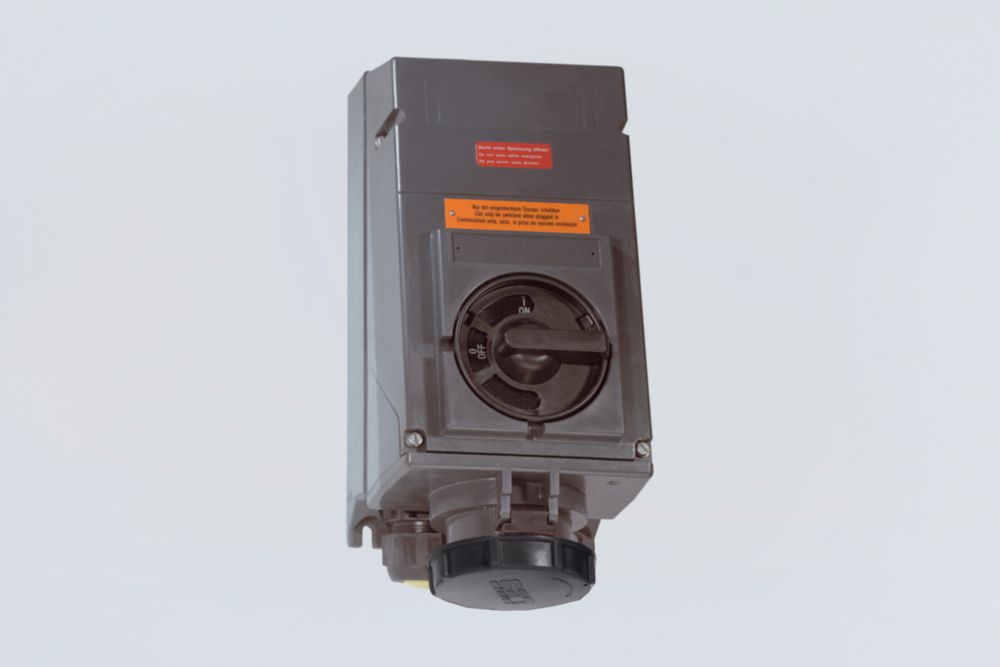

R STAHL 63 A Wall-Mounting Socket - 270904 - 8579/31-405

R STAHL Wall-Mounting Socket -8579/31-405, 63 A wall-mounting socket, 600....690 V AC Black, 3 P + PE, 5 h, M50 x 1.5, 16–35 mm, Polyester, Zone 1, 2, 21, 22, Art. No. 270904

More Information Download Catalog

The R. STAHL Series 8579/31 sockets for Zone 1/21 in 4- and 5-pole versions have full AC-3 switching capacity up to 63 A. The high degree of protection (IP66) ensures maximum protection against the ingress of dust and water in any application situation. Self-cleaning lamellar contacts provide optimum contact, and the plugs can be inserted and removed in the zero position quickly and easily. The load disconnect switch, with a mechanical locking device and a handle that can be locked in the 0 or I position, is an additional safety feature.

• Product Type: 8579/31-405
• Product description: 63 A wall-mounting socket

Key Features

• Reliable load disconnect switch with easily visible, lockable handle and display of the switching position
• An integrated auxiliary contact for control and signaling purposes can be optionally enhanced using pluggable Ex e or Ex i auxiliary contacts that are easily retrofittable
• Large temperature range of use
• High mechanical impact and shock resistance
• Perfect protection against penetration of liquids and dusts
• 3D data for download on the website

Technical Specifications

Explosion Protection:

• Application range (zones): 1, 2, 21, 22
• IECEx gas explosion protection: Ex db eb IIC T6 ... T5 Gb
• IECEx dust explosion protection: II tb IIIC T60 °C ... T75 °C Db
• ATEX gas explosion protection:  II 2 G Ex db eb IIC T6 ... T5 Gb
• ATEX dust explosion protection: II 2 D Ex tb IIIC T60 °C ... T75 °C Db
• IECEx gas certificate: IECEx PTB 06.0020
• IECEx dust certificate: IECEx PTB 06.0020
• Certificates: ATEX (PTB), Brazil (ULB), China (CQST), IECEx (PTB), Korea (KTL), Taiwan (ITRI)

Electrical Data:

• Type of voltage: Low voltage
• Rated operational voltage AC: 600 ... 690 V AC
• Rated operational current: 63 A
• Rated operational current:  max. 63 A
• Electrical service life: > 2x10^4 switching cycles
• Mechanical service life: > 2x10^4 switching cycles
• Auxiliary contacts: 2 (1 NO + 1 NC)
• Switching capacity main contacts: AC-3690 V, 63 A18.5 kW: 220/230/240 V30 kW: 380/400/415 V37 kW: 500 V55 kW: 690 V
• Frequency range: 50/60 Hz

Device-Specific Data:

• Back-up fuse with thermal protection: 80 A gG
• Back-up fuse without thermal protection: 63 A gG

Ambient Conditions:

• Ambient temperature: -45 °C to +55 °C
• Ambient temperature: -49 °F to +131 °F


Mechanical Data:

• IP degree of protection (IEC 60529): IP66
• IP degree of protection (IEC 60079): IP66
• Enclosure material: Polyamide, glass-fiber reinforced
• Silicone-free: No
• Multiple conductor connections: 2 x 16 mm²
• Multiple conductor connection AWG: 2 x AWG 6
• Finely stranded connection cross-section: 1 x 16 mm² ... 1 x 50 mm²
• Finely stranded connection cross-section AWG: 1 x AWG 6 ... 1 x AWG 1/0
• Stranded connection cross-section: 1 x 16 mm² ... 1 x 50 mm²
• Stranded connection cross-section AWG: 1 x AWG 6 ... 1 x AWG 1/0

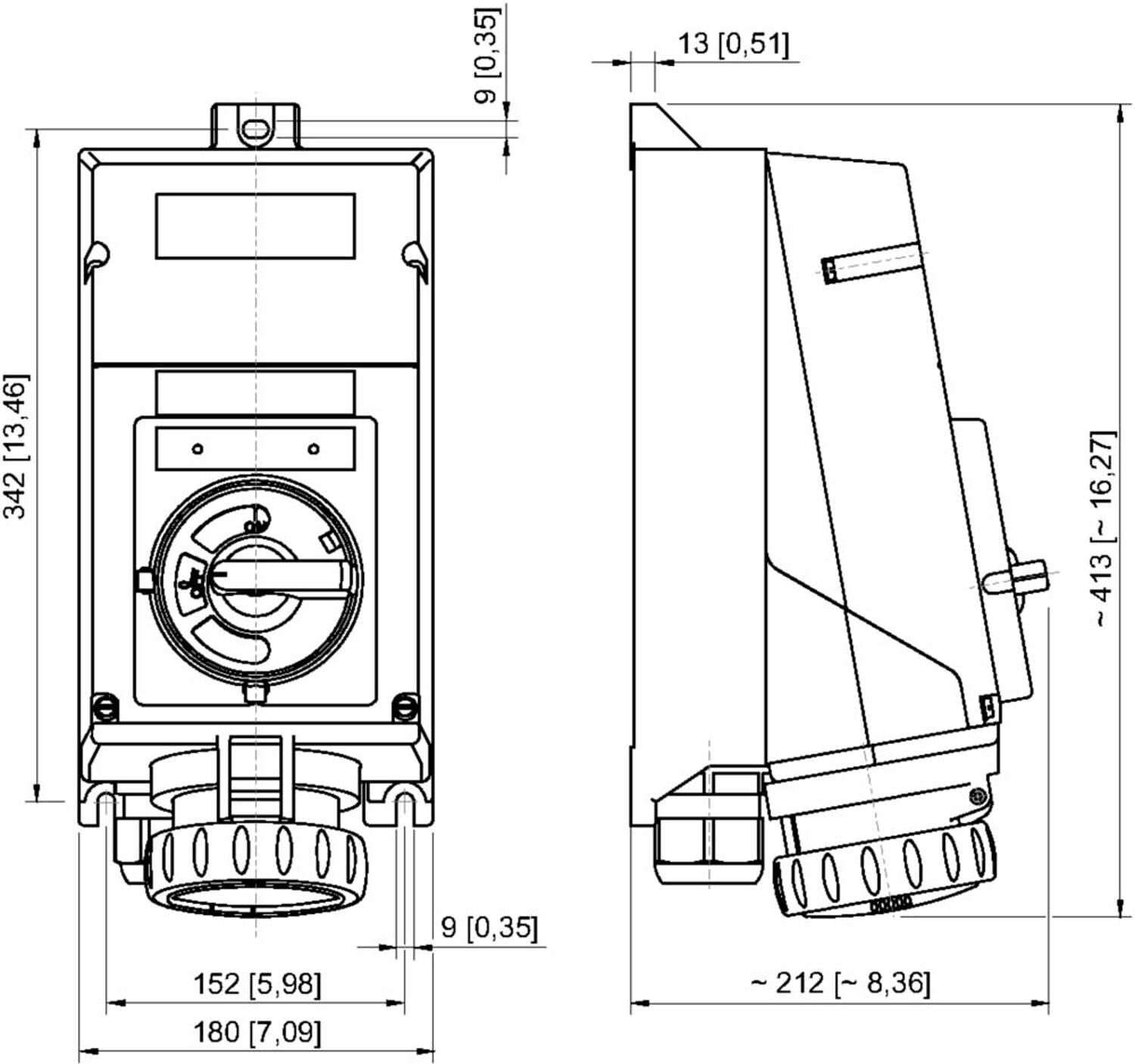

• Width: 180 mm
• Width, inches: 7.090 in
• Height: 212 mm
• Height in inches: 8.3600 in
• Length: 413 mm
• Length in inches: 16.27 in
• Impact strength (IEC 60079): 7 J
• Impact strength (IEC 62262): IK10
• Colour code: Black
• Coding (clock hour position): 5
• Lockable in: in 0- and I-position
• Series: SolConeX
• Detailed number of poles: 3 P + PE
• Weight: 7.8 kg
• Weight: 17.2 lb

Mounting / Installation:

• Connection: Screw terminal

Components:

• Entry 1 clamping range: 16 - 35 mm
• Entry 1 clamping range: 0.63 - 1.38 in
• Cable entry note: Entry 1: Bottom left  Entry 2: Bottom right
• Entry 1 model: 8161/7-M50-3516-LT
• Entry 1 type: Polyamide cable gland
• Entry 1: M50 x 1.5
• Entry 1 clamping range: 16 - 35 mm
• Entry 1 clamping range, inch: 0.63 - 1.38 in
• Metal entry possible 1: No
• Entry 2 model: 8290/3-M25
• Entry 2 type: Polyamide stopping plug
• Entry 2: M25 x 1.5
• Metal entry possible 2: No
