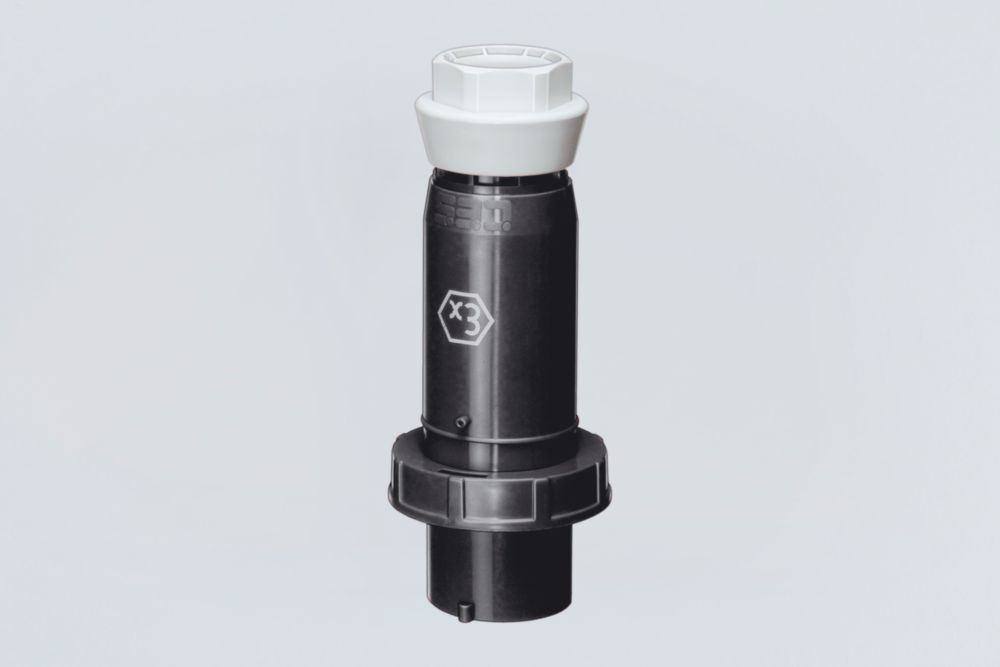

R STAHL 63 A Socket Plug - 270914 - 8579/12-405

R STAHL Socket Plug - 8579/12-405, 63 A plug, 600 ... 690 V AC Black, 3 P + PE, 5 h, 24 - 36 mm, Polyamide, Zone 1, 2, 21, 22   Art. No.: 270914

More Information Download Catalog

The R. STAHL Series 8579/12 plugs for Zone 1/21 are 4- or 5-pole versions up to 63 A. They can be plugged and unplugged simply and easily thanks to floating pins. The pivoting strain relief makes it easier to install the cable. Self-cleaning and corrosion-free plug pins made from high-quality materials ensure optimum electrical contact.

• Product variant: Plug
• Product Type: 8579/12-405
• Product description: 8579/12-405 3-pole plug, 600 to 690 V AC, 60 Hz, 63 A

Key Features

• Large temperature range of use
• High mechanical impact and shock resistance
• Perfect protection against penetration of liquids and dusts
• 3D data for download on the website

Technical Specifications

Explosion Protection:

• Application range (zones): 1, 2, 21, 22
• IECEx gas explosion protection: Ex db eb IIC T6 ... T5 Gb
• IECEx dust explosion protection: Ex tb IIIC T60°C/T75°C Db
• ATEX gas explosion protection: Ex II 2 G Ex eb IIC T6 ... T5 Gb
• ATEX dust explosion protection: Ex II 2 D Ex tb IIIC T60 °C/T75 °C Db
• IECEx gas certificate: IECEx PTB 06.0020
• IECEx dust certificate: IECEx PTB 06.0020
• Certificates: ATEX (PTB), Brazil (ULB), China (CQST), IECEx (PTB), Korea (KGS), Taiwan (ITRI)

Electrical Data:

• Type of voltage: Low voltage
• Rated operational voltage AC: 600 ... 690 V AC
• Rated operational current: 63 A
• Rated operational current: Max. 63 A
• Mechanical service life: > 1x10^3 Mating cycles
• Frequency range: 50/60 Hz

Ambient Conditions:

• Ambient temperature: -45 °C to +55 °C
• Ambient temperature: -49 °F to +131 °F

Mechanical Data:

• IP degree of protection (IEC 60529): IP66
• IP degree of protection (IEC 60079): IP66
• Enclosure material: Polyamide
• Silicone-free: No
• Finely Stranded connection cross-section: 1 x 2.5 mm² ... 1 x 16.00 mm²
• Finely Stranded connection cross-section AWG: 1 x AWG 14 ... 1 x AWG 6

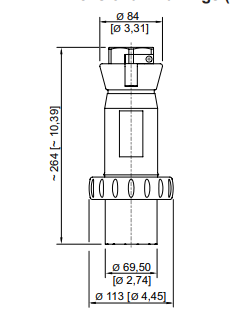

• Width: 113 mm
• Width, inches: 4.450 in
• Height: 113 mm
• Height in inches: 4.4500 in
• Length: 264 mm
• Length in inches: 10.39 in
• Impact strength (IEC 60079): 7 J
• Impact strength (IEC 62262): IK10
• Colour Code: Black
• Coding (clock hour position): 5
• Series: SolConeX
• Detailed number of poles: 3 P + PE
• Weight: 880 g
• Weight: 1.94 lb

Mounting / Installation:

• Connection: Screw terminal

Components:

• Cable Diameter: 24 - 36 mm
• Cable Diameter (Inch): 0.94 - 1.42 in
