Spectra Energy
Luminous Solarverter Pro PCU 3KVA eco 36Volt
Luminous Solarverter Pro PCU 3KVA eco 36Volt
Regular price
Rs. 34,299.00
Regular price
Rs. 60,000.00
Sale price
Rs. 34,299.00
Unit price
per
Tax included.
Couldn't load pickup availability

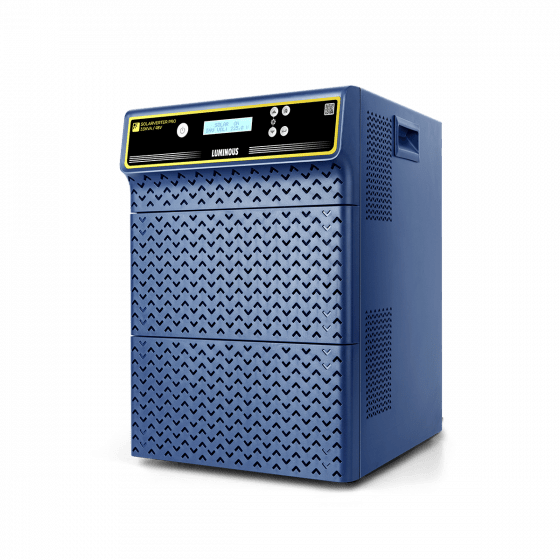

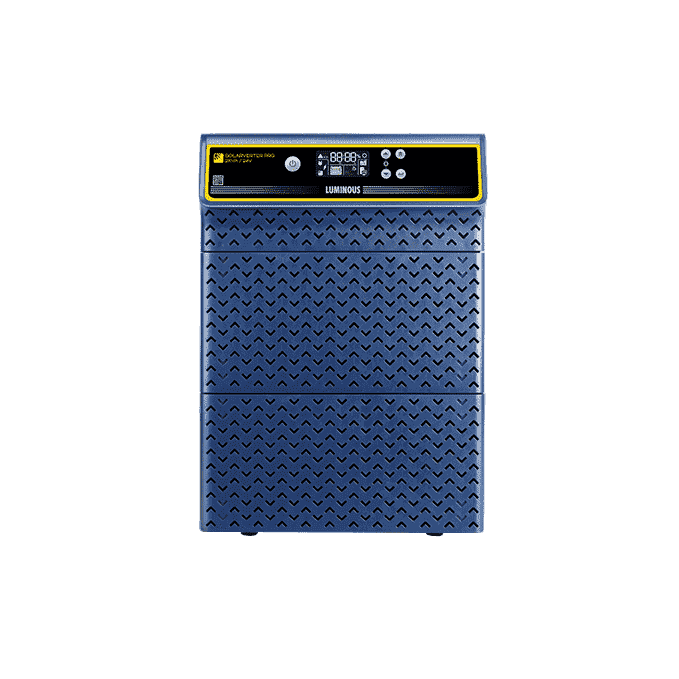

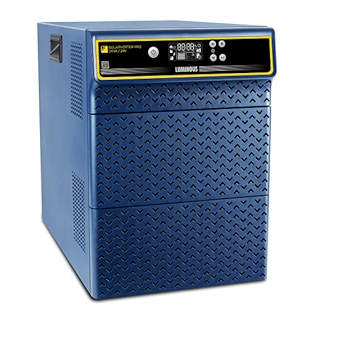

Luminous Solar Inverter Pro PCU 3KVA eco /36V
Luminous solar Inverter model solarverter Pro PCU 3KVA/36V, Capacity (KVA): 3 KVA Input Voltage Range (Vmp) – 60V-120V Charge Controller - MPPT, Input Voltage Range (Voc)- 75V-150V Nominal Battery Bank Voltage - 36V, MPPT charge controller to maximize solar generation from solar panels Inbuilt isolation transformer to protect from grid surges and noise User selectable source priority: Choose source priority from solar, battery and grid User friendly Informative LCD Display MCB protection against short circuit protection Pure sine wave output for better performance & safety of connected, MPPT charge controllers are more efficient compared to PWM charge controllers as they convert 30% more power from solar panels.
- Sine Wave Technology
- Capacity: 2000 VA
- Operating Voltage: 140 V-290 V
- Warranty: 24 Months
- Max supported panel power: 24V upto 2000 Wp
- Charge Controller Type- MPPT
- Supports 3 battery
- Smart Solar optimization
- User Controller Settings
Product Name: Luminous Solarverter Pro PCU 3kVA eco
Brand: Luminous
Product Type: Solar Inverter
Product Model: Solarverter Pro PCU
Type of Charger: MPPT
Capacity: 3000VA
Nominal Voltage: 36V
No. of Batteries Supported: 3
Maximum Panel Capacity(W): 3500Wp
Wave Form: Sine Wave
Nominal Output Voltage: 230V ± 2%
Nominal Output Current: 11A
Input Supply Phase: Single Phase
Input Voltage Range : 75V-150V
Input Voltage range (Vmp): 60V-120V
Nominal Frequency: 50Hz
Control: 16 Bit DSP Controlled
Type of Battery Supported: Tubular/SMF/Flat
Usage/Application: Commercial Applications, Homes and Small Shops
Warranty: 24 Months
Dimension: 300(L) x 417(W) x 452(H) mm
Weight: 32.5 Kg
Country of Origin: India
Packing: Standard Packing
