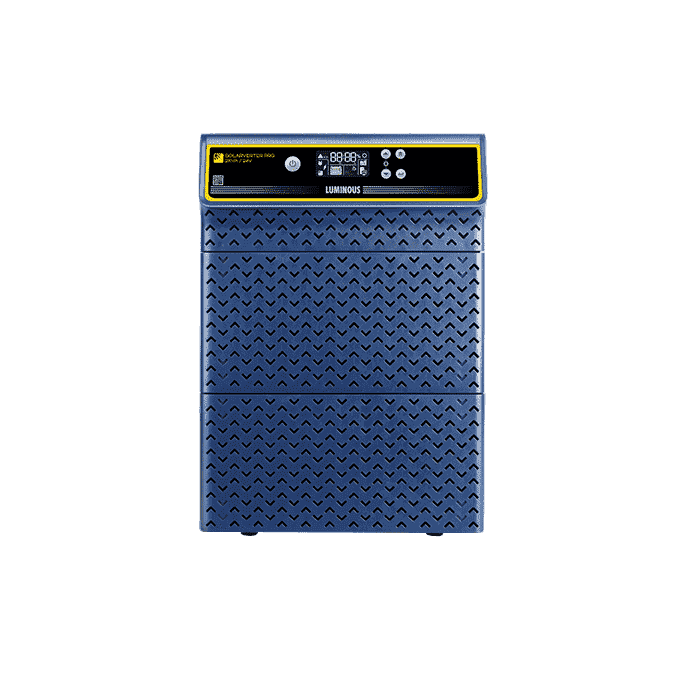

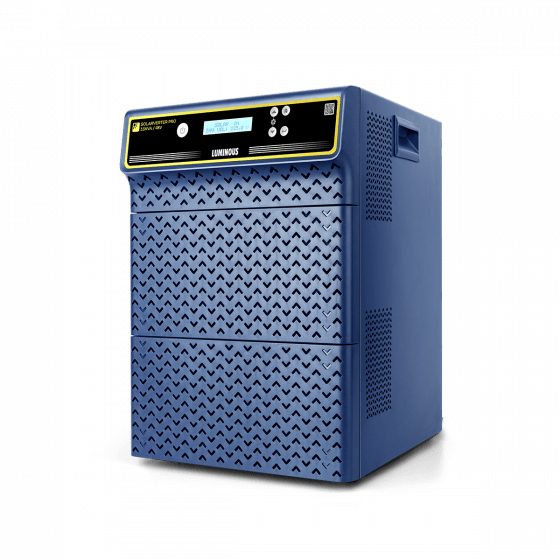

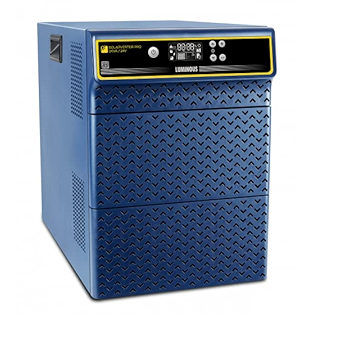

Luminous Solarverter Pro PCU 3.5KVA 48Volt
Luminous Solarverter Pro PCU 3.5KVA 48Volt
Regular price
Rs. 44,299.00
Regular price
Rs. 70,000.00
Sale price
Rs. 44,299.00
Unit price
per
Tax included.
Couldn't load pickup availability
Luminous Solar Inverter Pro PCU 3.5KVA/48V
Luminous solar Inverter model solarverter Pro PCU 3.5KVA/48V, Capacity (KVA): 3.5 KVA Input Voltage Range (Vmp) – 110V-180V Charge Controller - MPPT, Input Voltage Range (Voc)- 130V-220V Nominal Battery Bank Voltage - 48V, MPPT charge controller to maximize solar generation from solar panels Inbuilt isolation transformer to protect from grid surges and noise User selectable source priority: Choose source priority from solar, battery and grid User friendly Informative LCD Display MCB protection against short circuit protection Pure sine wave output for better performance & safety of connected, MPPT charge controllers are more efficient compared to PWM charge controllers as they convert 30% more power from solar panels.
- Sine Wave Technology
- Capacity: 3500 VA
- Warranty: 24 Months
- Max supported panel power: 48V upto 3500 Wp
- Charge Controller Type- MPPT
- Supports 4 battery
- Smart Solar optimization
- User Controller Settings
Product Name: Luminous Solarverter Pro PCU 3.5kVA
Brand: Luminous
Product Type: Solar Inverter
Product Model: Solarverter Pro PCU
Type of Charger: MPPT
Capacity: 3500VA
Nominal Voltage: 48V
No. of Batteries Supported: 4
Maximum Panel Capacity(W): 3500Wp
Wave Form: Sine Wave
Input Supply Phase: Single Phase
Input Voltage Range : 130V-220V
Input Voltage range (Vmp): 110V-180V
Nominal Output Current: 12.5A+/-1A
Nominal Frequency: 50Hz
Control: 32 Bit DSP Controlled
Type of Battery Supported: Tubular/SMF/Flat
Usage/Application: Commercial Applications, Homes and Small Shops
Warranty: 24 Months
Dimension: 590(L) x 433(W) x 523(H) mm
Weight: 47.5 Kg
Country of Origin: India
Packing: Standard Packing
