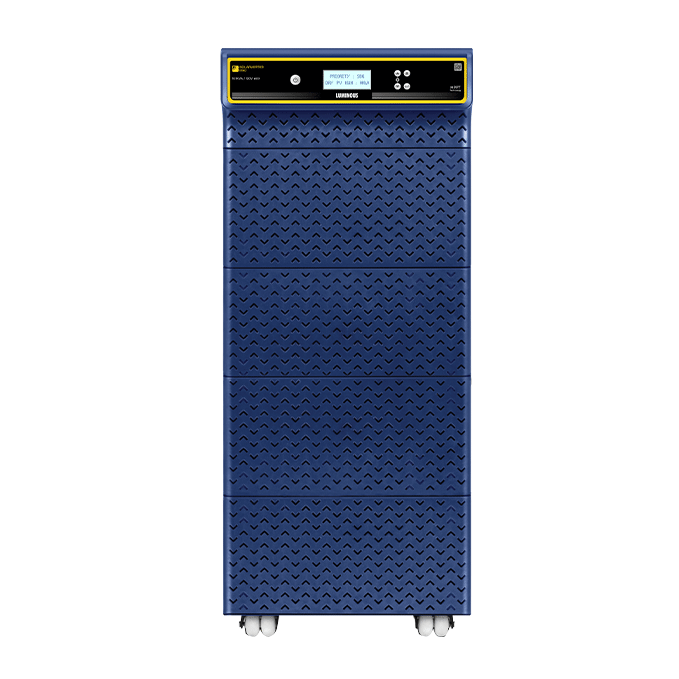

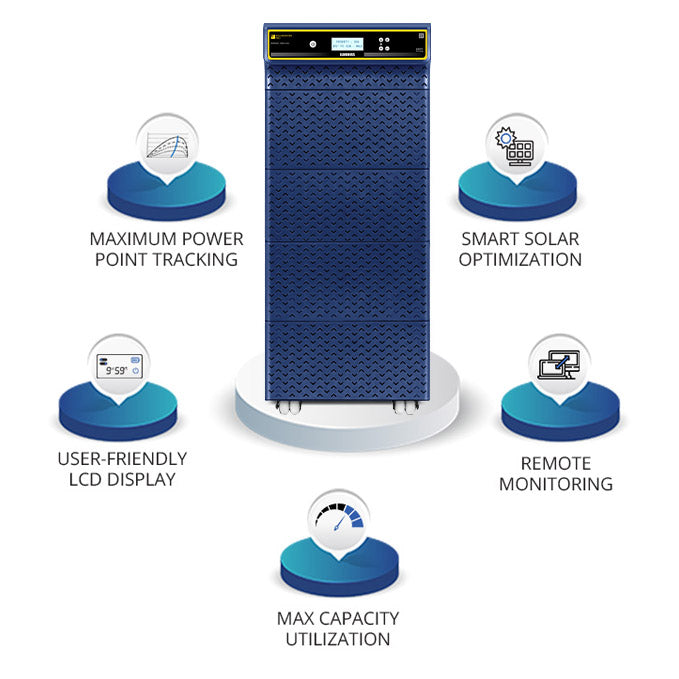

Luminous Solar Inverter Pro PCU 10KVA/120V
Luminous solar Inverter model solarverter Pro PCU 10KVA/120V eco , Capacity (KVA): 10 KVA Input Voltage Range (Vmp) – 140V-280V Charge Controller - MPPT, Input Voltage Range (Voc)- 180V-260V Nominal Battery Bank Voltage - 120V, MPPT charge controller to maximize solar generation from solar panels Inbuilt isolation transformer to protect from grid surges and noise User selectable source priority: Choose source priority from solar, battery and grid User friendly Informative LCD Display MCB protection against short circuit protection Pure sine wave output for better performance & safety of connected, MPPT charge controllers are more efficient compared to PWM charge controllers as they convert 30% more power from solar panels.
- Sine Wave Technology
- Capacity: 10000 VA
- Warranty: 24 Months
- Max supported panel power: 120V upto 10000 Wp
- Charge Controller Type- MPPT
- Supports 10 battery
- Smart Solar optimization
- User Controller Settings
Product Name: Luminous Solarverter Pro PCU 10kVA eco
Brand: Luminous
Product Type: Solar Inverter
Product Model: Solarverter Pro PCU
Type of Charger: MPPT
Capacity: 10kVA
Nominal Voltage: 120V
No. of Batteries Supported: 10
Maximum Panel Capacity(W): 10000Wp
Wave Form: Sine Wave
Input Supply Phase: Single Phase
Input Voltage Range : 180V-260V
Input Voltage range (Vmp): 140V-280V
Nominal Output Current: 20A+/-1A
Nominal Frequency: 50Hz
Control: 32 Bit DSP Controlled
Type of Battery Supported: Tubular/SMF/Flat
Usage/Application: Commercial Applications, Homes and Small Shops
Warranty: 24 Months
Dimension: 740(L) x 400(W) x 580(H) mm
Weight: 103 Kg
Country of Origin: India
Packing: Standard Packing
