Spectra Energy

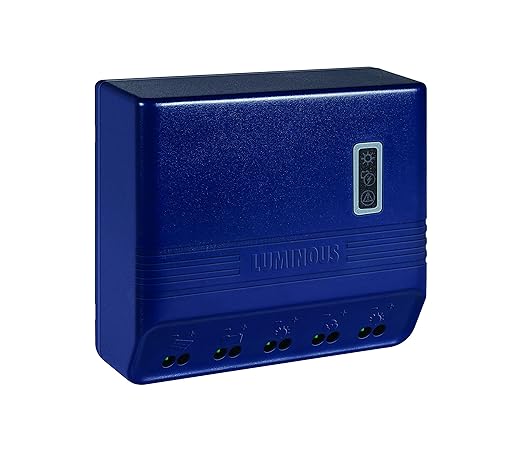

Luminous Charge Controller SCC 1220

Luminous Charge Controller SCC 1220

Regular price Rs. 1,170.00
Regular price Rs. 2,500.00 Sale price Rs. 1,170.00
Sale Sold out
Tax included.
Size

Luminous Charge Controller SCC 1220

Luminous Solar Charge controllers are required to fully charge a battery from Solar Panels without permitting overcharge. They prevent reverse current flow at night.

Luminous SCC1220NM PVC Solar Charge Controller.

  • 98% efficiency
  • Inbuilt Low volatge disconnect (LVD)
  • Automatic battery selection
  • Prevents battery from overcharging
  • Prevents reverse current flow from battery to panel at night
  • Runs DC appliances
  • Charge DC devices directly without using adapter via USB port.

Product Name: Luminous Charge Controller SCC 1220

Brand: Luminous

Product Type: Solar Charge Controller

Product Model: SCC 1220

VA Rating: 20A@12v/24v

Charging Current: 20 Amps

Max.supported panel power (Wp): 400Wp@12v, 800wp@24v

Input Voltage Range (Voc): 17-25(12v), 36-50(24v)

Controlled by voltage: Available

Battery type selection: Lead Acid & SMF

Self consumption: Less than 10mA

Efficiency Charging: 96%

Efficiency Load: 96%

Operating temperature range: 0°C to 50°C

Power connections: 30 Ampere Terminal

Warranty: 1 Year (12 months)

Usage/Application: Homes & Small Shops

Dimension: 40 x 60 x 135 (L x W x H)

Weight: 350 g

Country of Origin: India

Certificate: Not Applicable

Packing: Standard Packing

Delivery: 14 Days (Max)

Return Policy: Returns Not Accepted (Unless products has any Damage)

Minimum Order Quality (MOQ): (Pack of 1)

Available for Export Order: Yes
