Luminous Charge Controller SCC 1206

Luminous Charge Controller SCC 1206

Luminous Solar Charge controllers are required to fully charge a battery from Solar Panels without permitting overcharge. They prevent reverse current flow at night.

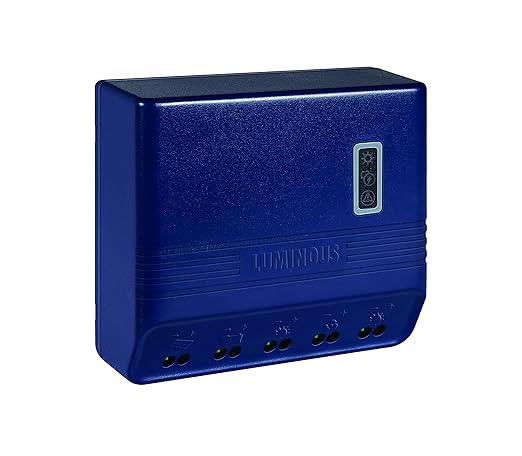

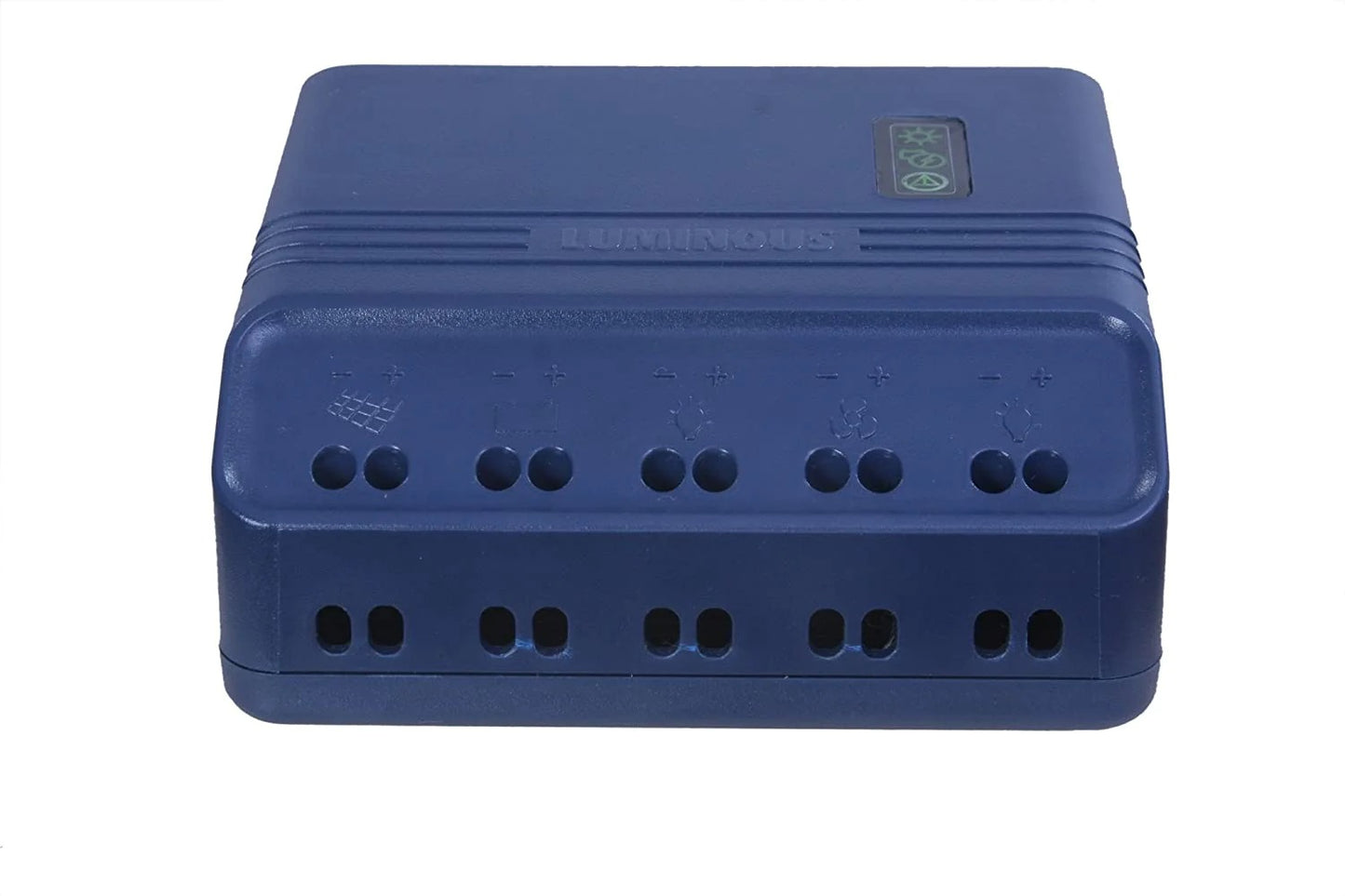

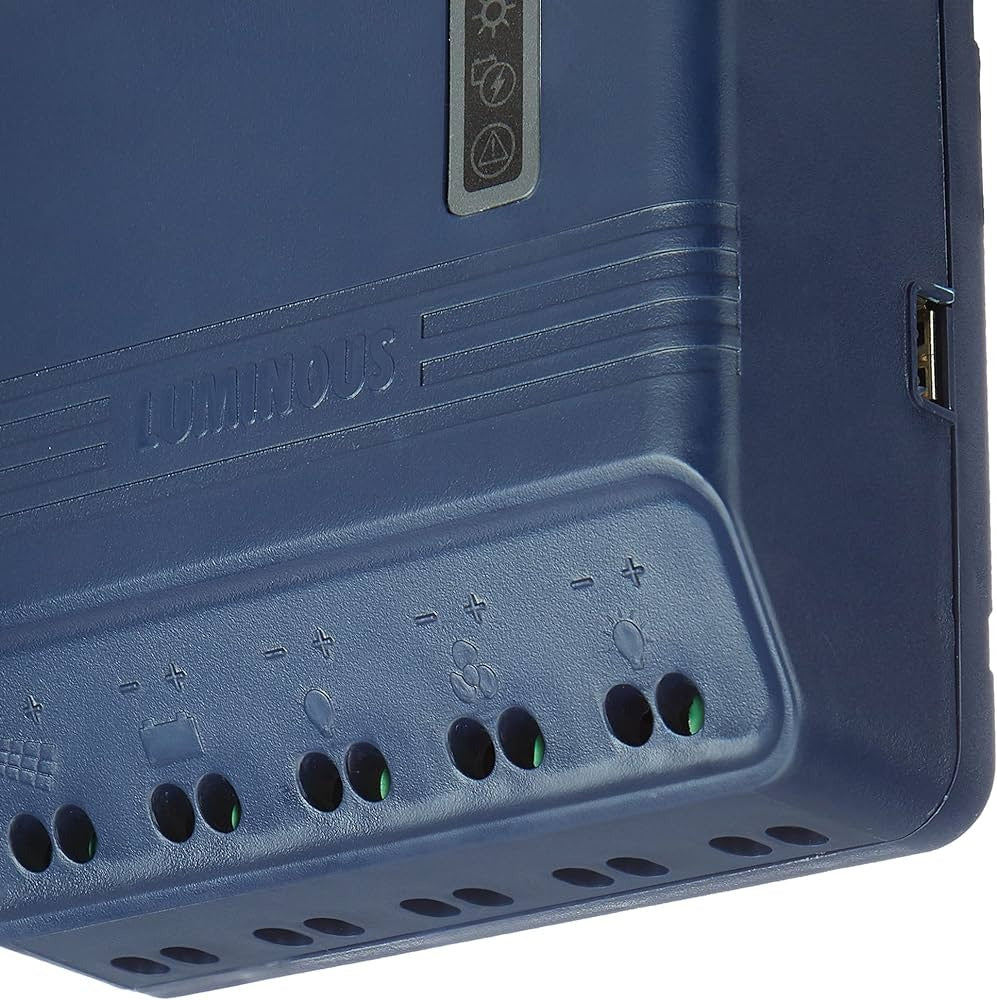

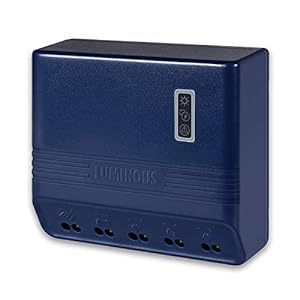

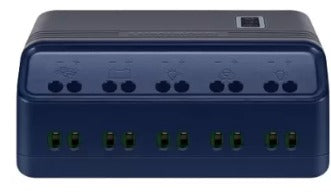

Luminous SCC1206NM PVC Solar Charge Controller.

• 98% efficiency
• Inbuilt Low volatge disconnect (LVD)
• Automatic battery selection
• Prevents battery from overcharging
• Prevents reverse current flow from battery to panel at night
• Runs DC appliances
• Charge DC devices directly without using adapter via USB port.

Product Name: Luminous Charge Controller SCC 1206

Brand: Luminous

Product Type: Charge Controller

Product Model: SCC 1206

VA Rating: 6A@12v

Charging Current: 6 Amps

Max.supported panel power (Wp): 125Wp@12v

Maximum solar panel voltage: 25V

Input Voltage Range (Voc): 17-25

Controlled by voltage: Available

Battery type selection: Lead Acid & SMF

Self consumption: Less than 10mA

Efficiency Charging: 98.5%

Efficiency Load: 98%

Operating temperature range: 0°C to 50°C

Power connections: 30 Ampere Terminal

Warranty: 1 Year (12 months)

Usage/Application: Homes & Small Shops

Dimension: 40 x 60 x 135 (L x W x H)

Weight: 280 g

Country of Origin: India

Certificate: Not Applicable

Packing: Standard Packing

Delivery: 14 Days (Max)

Return Policy: Returns Not Accepted (Unless products has any Damage)

Minimum Order Quality (MOQ): (Pack of 1)

Available for Export Order: Yes
