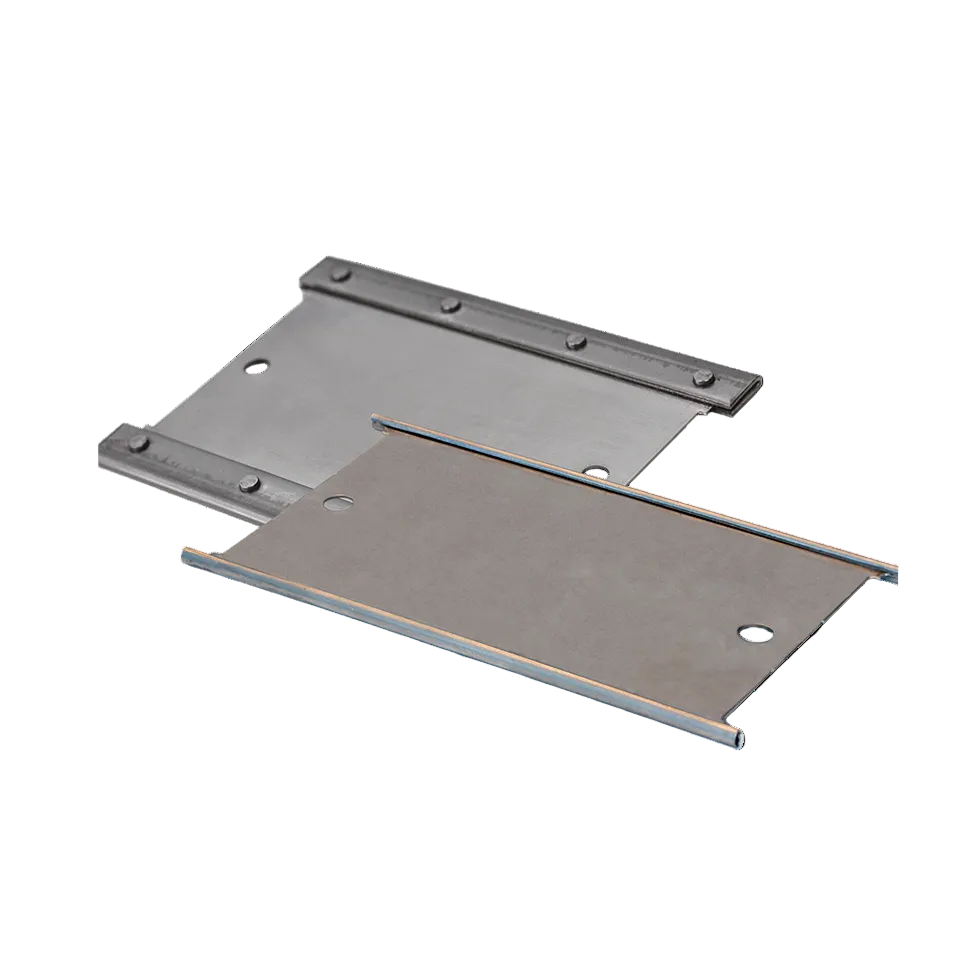

HAWKE P/N: E895931247120000, Stainless Steel Stayplate 931 (pc)

HAWKE P/N: E895931247120000, Stainless Steel Stayplate 931 (PC)

More Information Download Catalog

Stainless Steel Stayplate Datasheet

Hawke Transit System Stayplates ensure the blocks in a Hawke rectangular system (tolerant and blank ones) are fixed in position after compression.
A stayplate should be placed above each complete row of insert/filler blocks. However, never on the last top row (underneath the compression plate).

• Available in AISI 304 stainless steel. AISI 316 and other materials under request.
• High-pressure stay plates (Ref. 931/P) are to be used in applications where the pressure requirement is greater than 3.5 bar.
