Spectra Energy

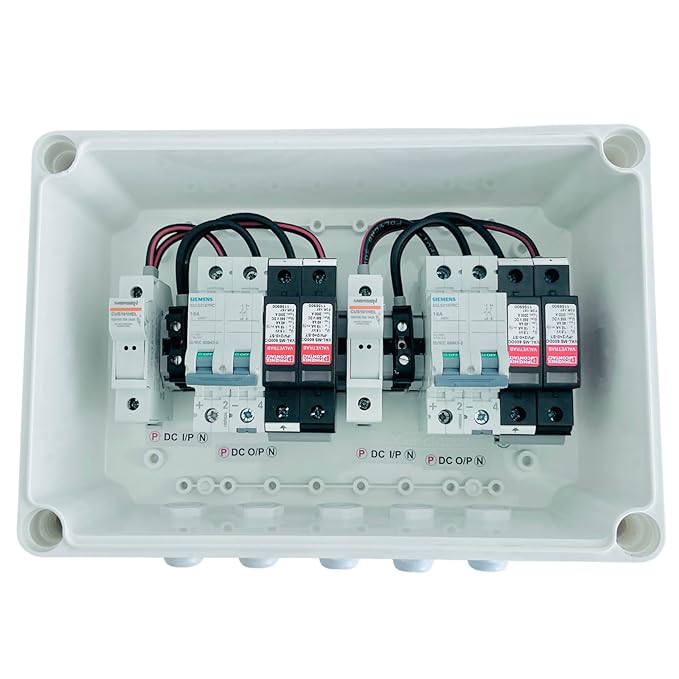

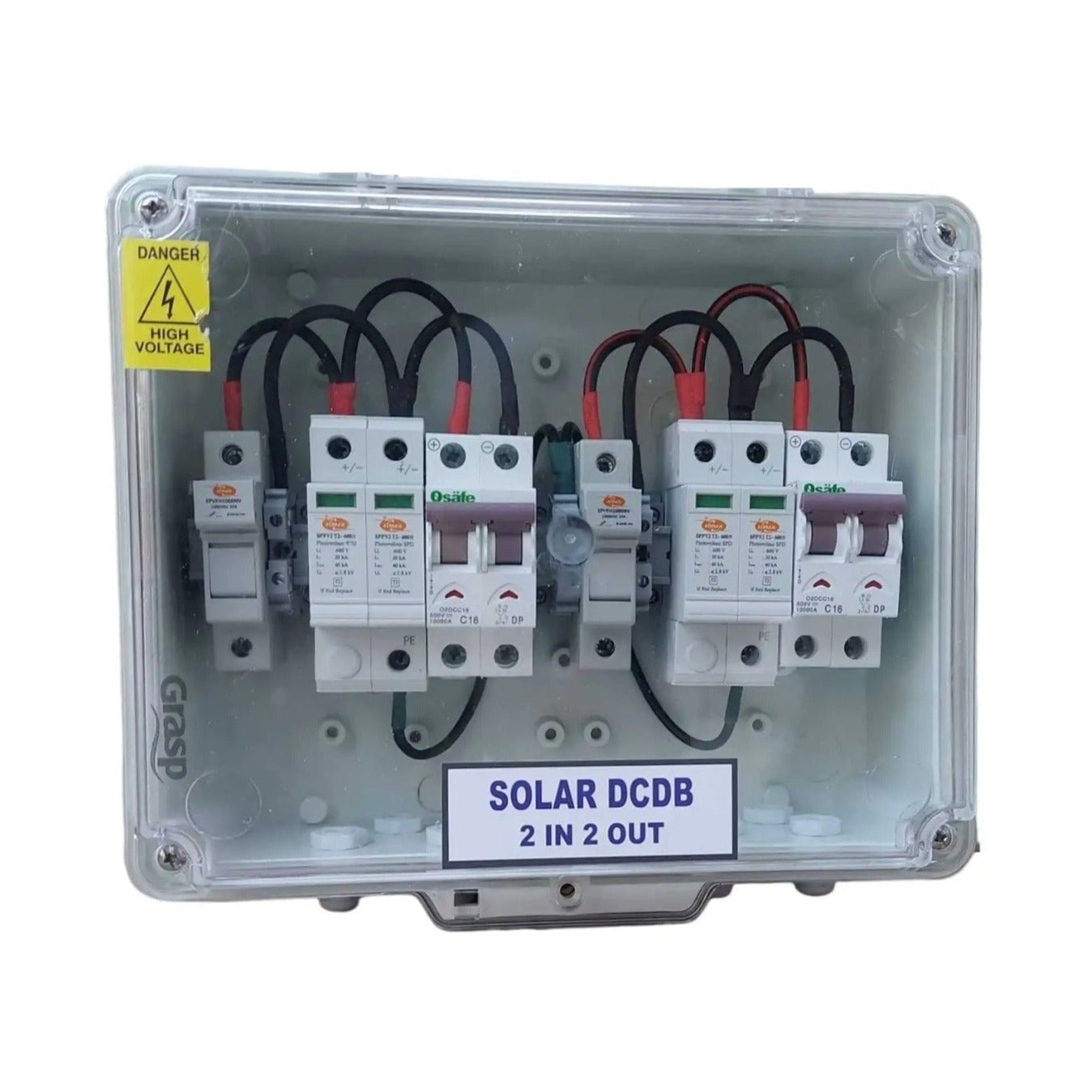

Solar DCDB Box 4-6KW 2MPPT- 2 IN 2 OUT- Three Phase

Solar DCDB Box 4-6KW 2MPPT- 2 IN 2 OUT- Three Phase

Regular price Rs. 7,750.00
Regular price Rs. 9,000.00 Sale price Rs. 7,750.00
Sale Sold out
Tax included.

Solar DCDB Box 4-6KW 2MPPT- 2 IN 2 OUT- 3 Phase
DCDB box is a component of an electricity supply system which divides an electrical power feed into subsidiary circuits, which provides a protective fuse or circuit breaker for each circuit.  DCDB controls the DC power from solar panel and with having necessary surge protection device (SPD) and fuses and if necessary MCB also for Single Phase. A solar DCDB is a system which controls the direct current coming from the solar panels. If anything goes wrong at the solar panel side, it will give protection to the equipment and prevent it from damage. This system primarily protects solar panel strings and the solar inverter.
  •  A DCDB box contains a DC SPD to protect against surges, a DC MCB, and a fuse that breaks the circuit in case of high voltages.
  • IP 65/66 Protected (PC Enclosures)
  • Short Circuit & Overload Protection
  • Over Voltage Protected (Y-PV)
  • No Air Condensation
  • Testing Wire Harnessing to Ensure High Conductivity
Product Name: DCDB BOX 4-6 KW
Product Type: DCDB BOX
Product Model: 4-6 KW 1MPPT
Phase: Three
Power: 4-6kw
Number of Strings: 2 in 2 Out
Rated Voltage: 1000 VDC
No. of DC Inputs: 1-6
No. of DC Outputs: 1-6
Input Max Current: 10 to15A
Output Max Current: 16 to 32A
Enclosure Type: PC, Transparent Cover
Color: White Transparent
Is It Waterproof: Waterproof
Material: Copper, Polycarbonate
Warranty: 2 Years
Usage/Application: Indoor/ Outdoor
Dimension: 280(L) x 280(W) x 130(H) mm
Weight: 3 Kg
Country of Origin: India
Packing: Standard Packing
