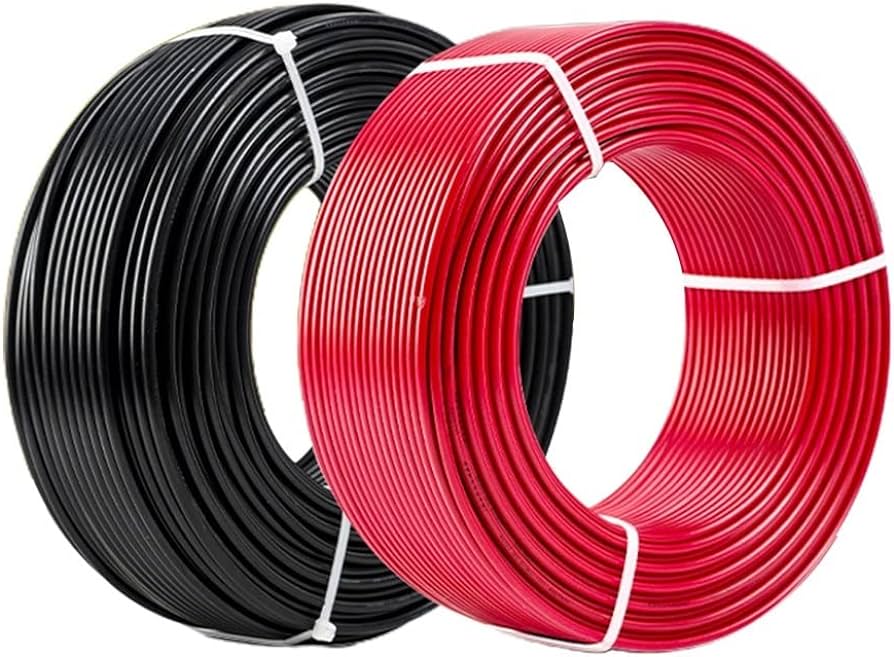

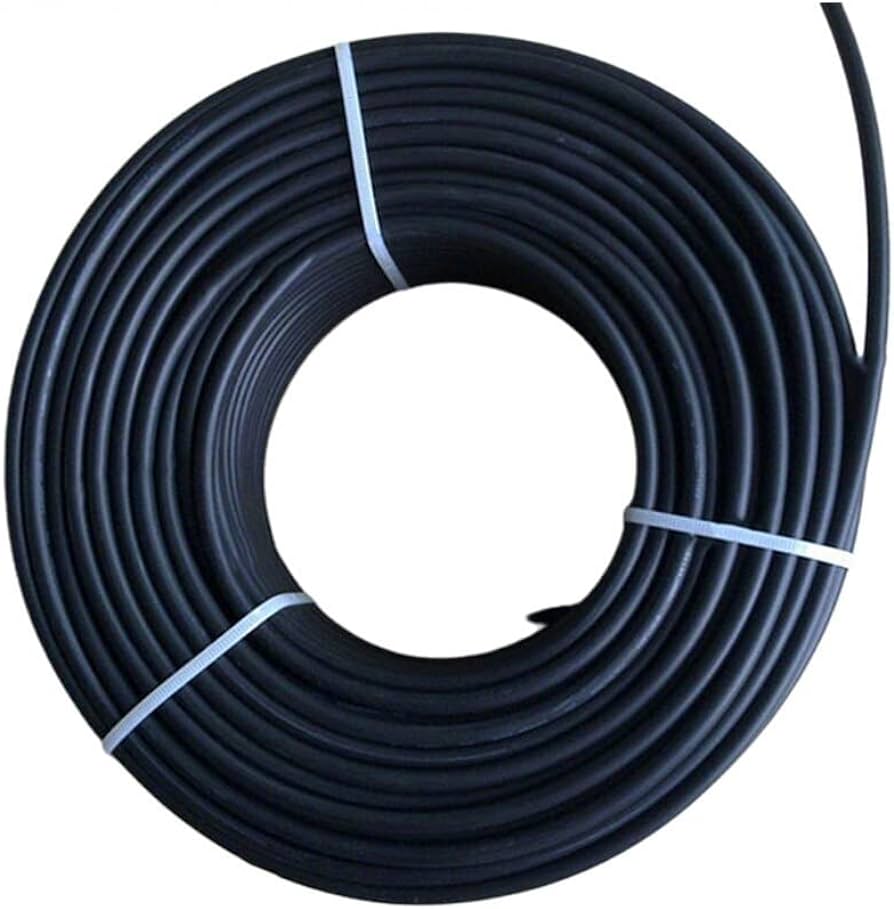

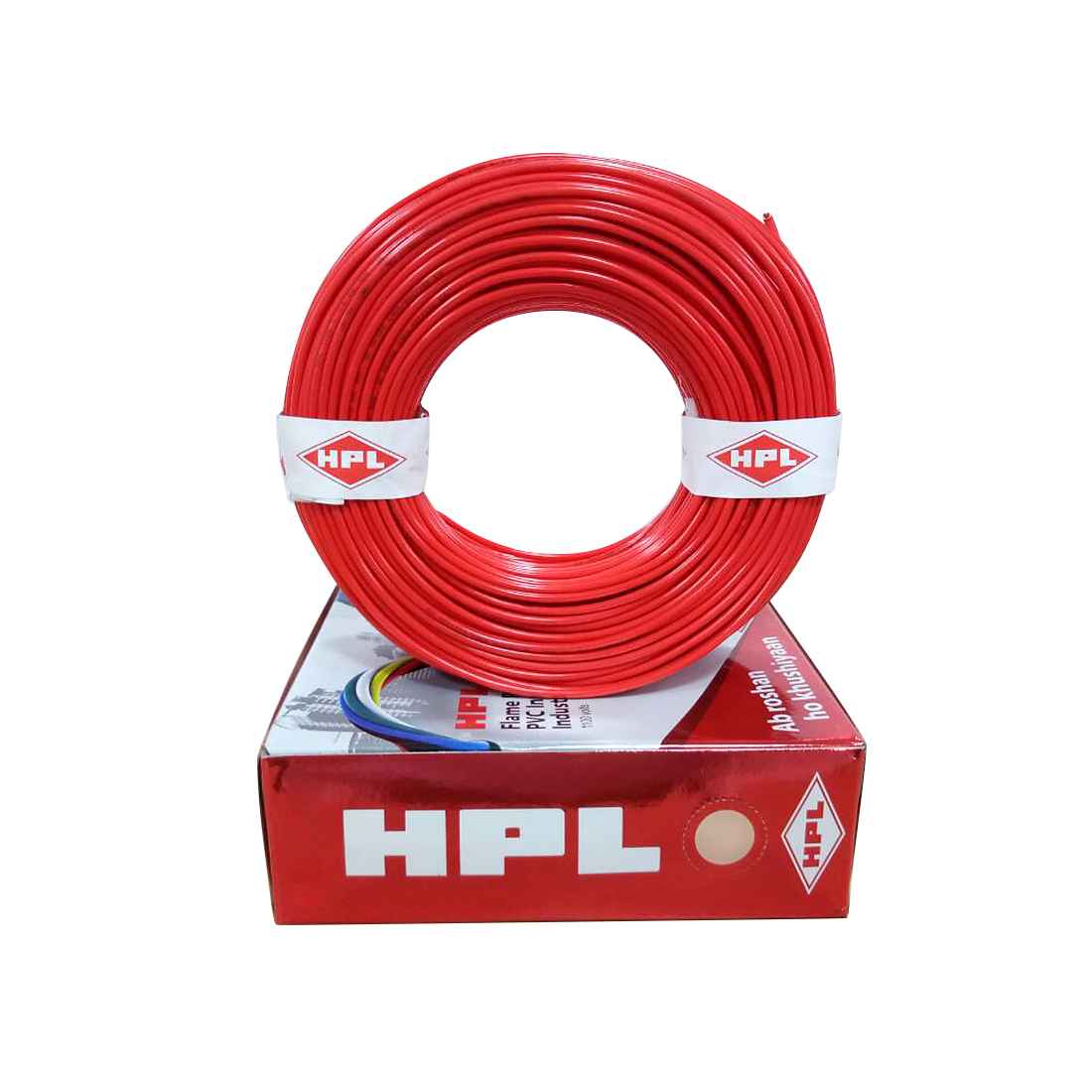

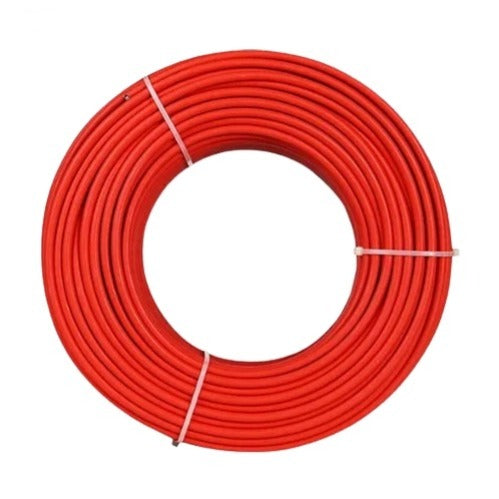

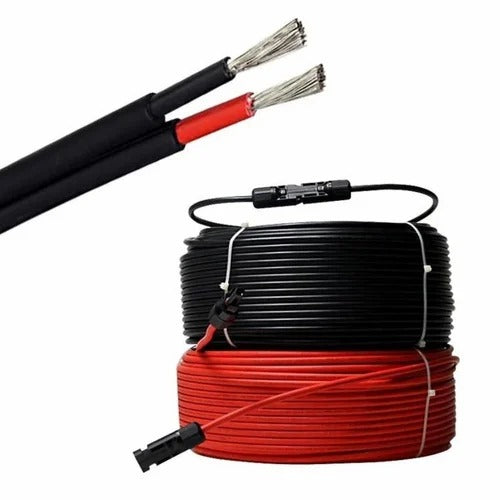

HPL DC CABLE 4 Sq.mm - 100 Meter Roll

DC CABLE 4 Sq.mm

SOLAR CABLE is one of the most crucial parts. They are connected on DC side of the system, proper cable sizing and its quality ultimately decides the power delivered to the load and in turn efficiency of the entire system because undersized cable results into heating which may lead further up to 2 hazardous incidents like fire. Also Even a small increase in cable resistance resulting into increased I Rlosses which is considered as a higher loss of energy and such cable will lose its acceptance.

Further as solar cable has to function in open atmosphere over a long period, it has to withstand all environmental severities like UV radiation, rain, dust & dirt, temperature variations, humidity, insects and microbes etc. Frequent failure / replacement of solar cable will lead to decrease in the overall project efficiency resulting in high operational costs. UV resistance: full protection against ultraviolet rays.

Special Properties of HPL Solar Cables :

• Outdoor durability: resists extreme temperatures (-40°C to 120°C) and ozone resistant.
• Halogen-free : Low Smoke Emission & Low Toxicity/Corrosively during fire.
• Properties against fire : flame retardant, fire retardant.
• Flexibility and stripping ability : for fast and easy installation.
• Lifetime reliability : lasts up to 30 years even under tough external conditions.
• Fully recyclable : in accordance with new environmental regulations.
• Suitable to any connector types.
• According to EN/IEC/IS.

Product Name:  DC CABLE 4 Sq.mm

Brand: HPL

Size: 0.3 In

In Box: 100 Meter Roll

Color:  Red and Black

Material: Zero Halogen & Cross-Linked Polyolefin Compound, Annealed Tinned Copper Conductor

HR 105°C PVC Insulation Thickness-Nominal (mm): 0.8 mm

UV HR 105°C PVC Sheathing Thickness-Nominal (mm): 0.90 mm

Minimum Bending radius (mm) : 29

Short circuit current rating for 1 sec. duration : 0.5

Voltage Rating: 1.5(1.8) KV DC

High Voltage Test :  6.5 KV DC for 5 Minutes.

Range: Single core

Max.Conductor D.C. Resistance at 20ºC (Ohm/Km): 5.09

Average Diameter of Conductor (mm): 2.39

Approx. Overall diameter of cable (mm):5.8

Type: Cable

Weight: 60kg

Size / Dimension: 21.4 x 19.2 x 7.2 cm

Certificate: Not Applicable

Packing: Standard Packing

Delivery: 14 Days (Max)

Return Policy: Returns Not Accepted (Unless products has any Damage)

Minimum Order Quality (MOQ): (Pack of 1)

Available for Export Order: Yes
