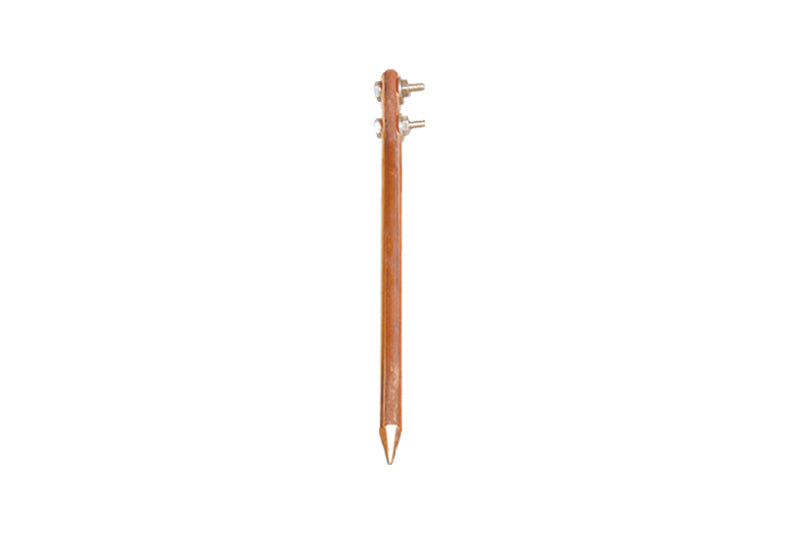

Copper Bonded Rod 17.2mm dia x 2Meter x 100 Microns

Nickel Sealed Copper Bonded Rod 17.2mm dia. x 2Mtr Long x 100 Microns with Pressed Terminals and SS Nut Bolts

  Electrolytic Grade Copper is Molecularly Bonded to Nickel-Sealed Low Carbon Steel Core having High Tensile Strength. Nickel Sealing is done for good Adhesion and Copper Coating will not crack when bent or driven. No part of steel is Exposed since Copper Coating is done after all Fabrication. The standard copper coating thickness is 250/100 microns. Copper bonded earthing rods are use for earthing. It will be used for Neutral earthing of electrical wiring systems. It also use for Body earthing of electrical appliance. customers can purchase copper bonded earthing strip with plates for connections.

Product Name: Copper Bonded Rod 17.2 mm x 2 Mtr Pressed Terminals

Brand: Excel Erthings

Product Type: Copper Bonded Rod

Material: Low Carbon Steel (Tata/ Jindal/ Vizag)

Base Coating Material: Nickel

Coating Material: 99.9 % Pure Electrolytic Grade Copper Anode (Mitsubishi Luvata Japan)

Coating Thickness: 100 Microns

Diameter:17.2mm

Length: 2 Meter

Tin Coatind on spikes: 100 Microns

Usage/Application: Grounding Copper Rod

Country of Origin: India

Packing: Standard Packing
