Solar ACDB Box 4-6KW 2MPPT Three Phase
Solar ACDB Box 4-6KW 2MPPT Three Phase
Regular price
Rs. 6,500.00
Regular price
Rs. 8,000.00
Sale price
Rs. 6,500.00
Unit price
per
Tax included.
Couldn't load pickup availability

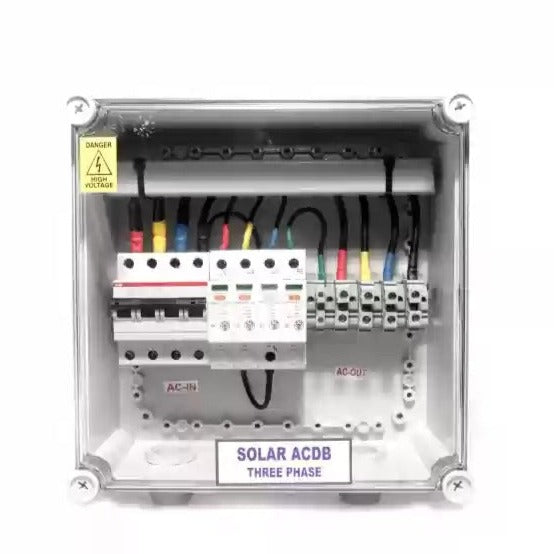

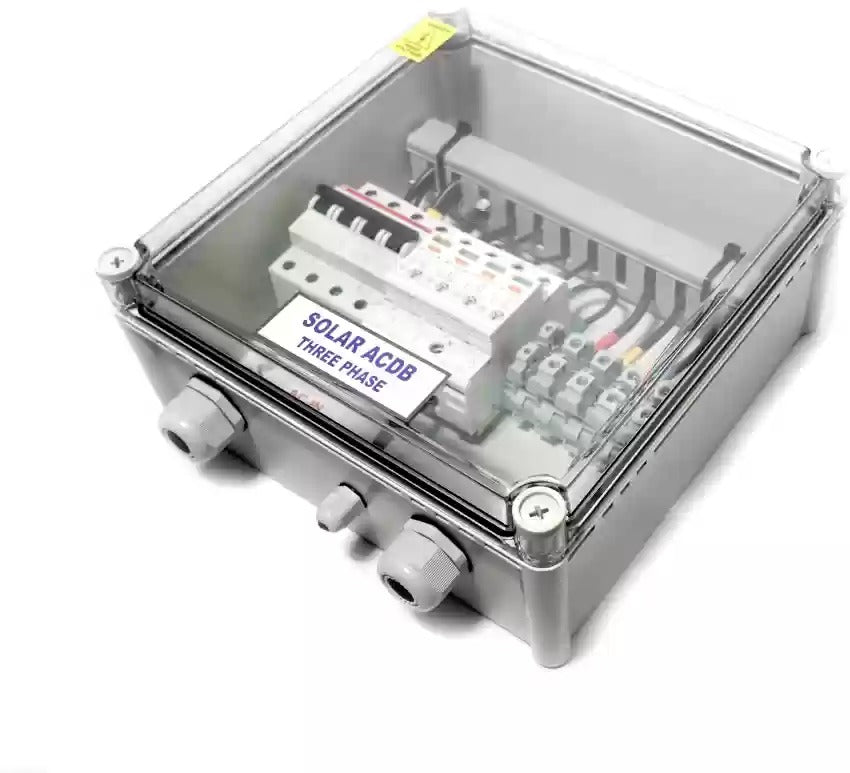

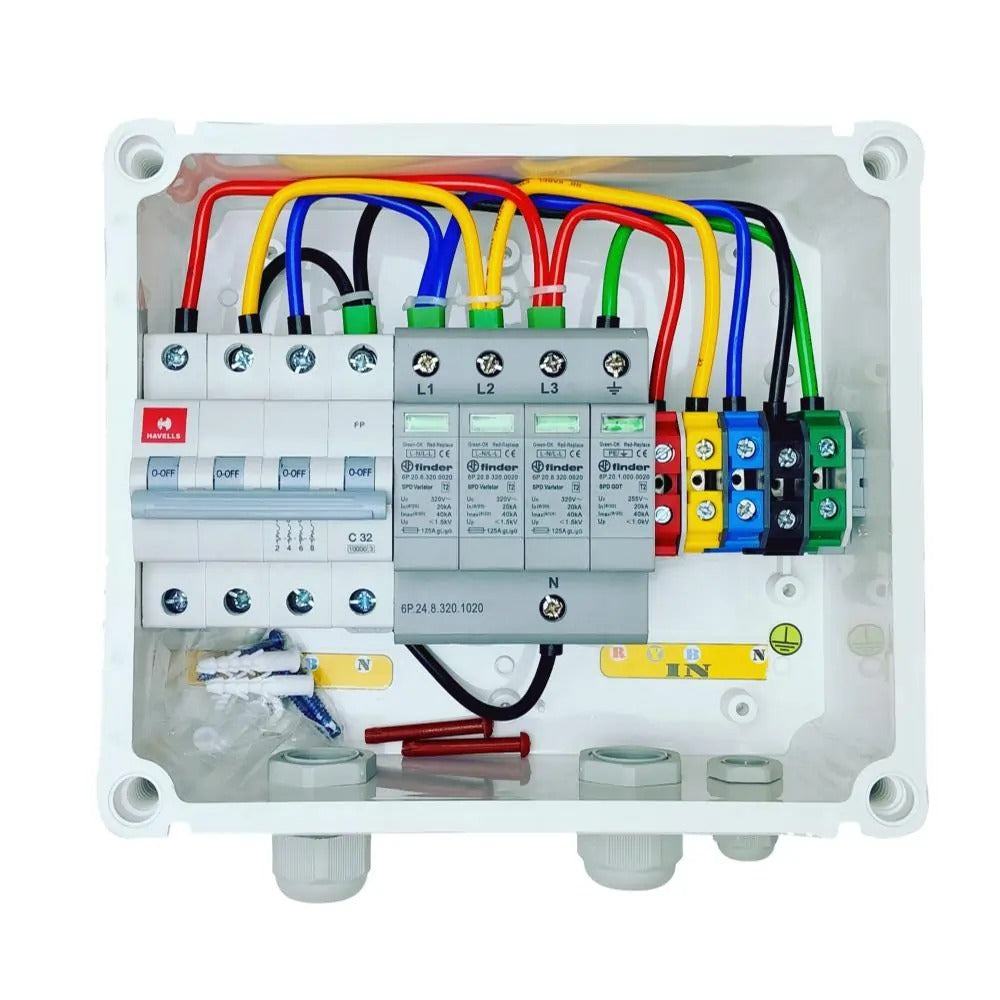

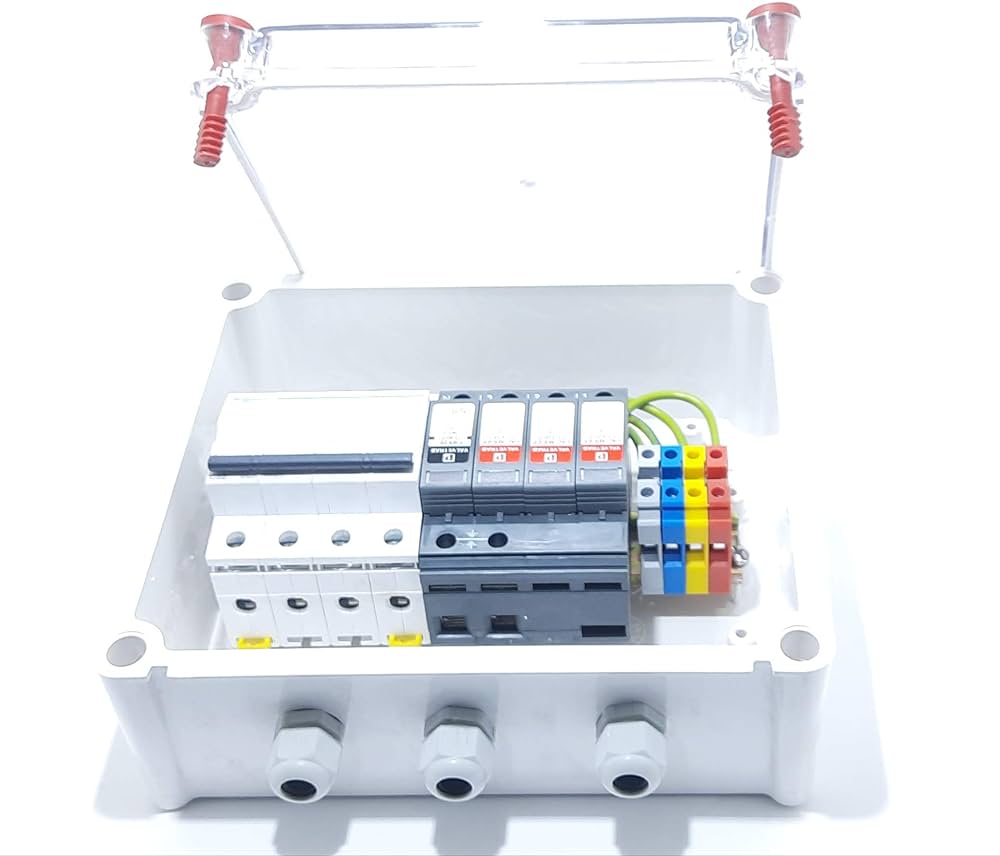

Solar ACDB Box 4-6KW 2MPPT - 3 Phase
Solar ACDB are an important part of SPV system to provide extra electric protection to the system during failures. AC distribution box provides protection in Load AC side during failures. ACDB incorporates MCB and MCCB’s etc. It has provision for surge protection also inside to ensure maximum protection to the sophisticated electronic equipment. This is Single Phase Solar ACDB Box with is basically used after Solar Inverter for protection of surge occur from AC Side. Solar ACDB for Three Phase Solar On-Grid/Off-Grid system. It is economical, safe and reliable product. It protects AC Side of Solar System from over current, short circuit and external Surges.
- Enclosures made of ABS, polycarbonate or CRCA.
- IP 54, 65, 67 rated enclosures
- Inbuilt zero Export Protection
- Suitable for TT & TN System
- No Air Condensation
- Testing Wire Harnessing to Ensure High Conductivity
- Every component is of reputed make.
- SPD protection. MCB for distribution.
- MCCB disconnected for protection.
- Multifunction meter with current, voltage, power, frequency etc.
Product Name: Solar ACDB Box 4 -6 KW
Product Type: ACDB BOX
Product Model: 4-6 KW 2 MPPT
MPPT: 2
Phase: Three
Inputs Current Rating : 6A to 63A
Outputs Current: 6A to 63A
Frequency: 50 Hz + 5%
No. of Outputs: 1
Control Type: Contactor
Feeder Type: MCB, C-Curve
Cable Entry: Bottom
Color: White Transparent
Material: Copper, Polycarbonate
Is It Waterproof: Waterproof
Warranty: 5 Years
Operating Conditions Temp: 0 to 45 Degree C
Usage/Application: Indoor/Outdoor
Dimension: 180(L) x 130(W) x 100(H) mm
Weight: 4 Kg
Country of Origin: India
Packing: Standard Packing
