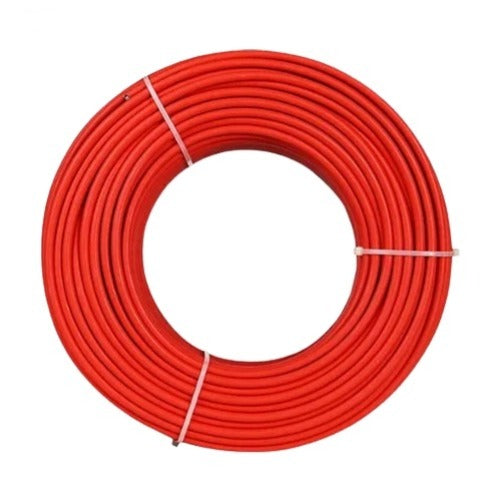

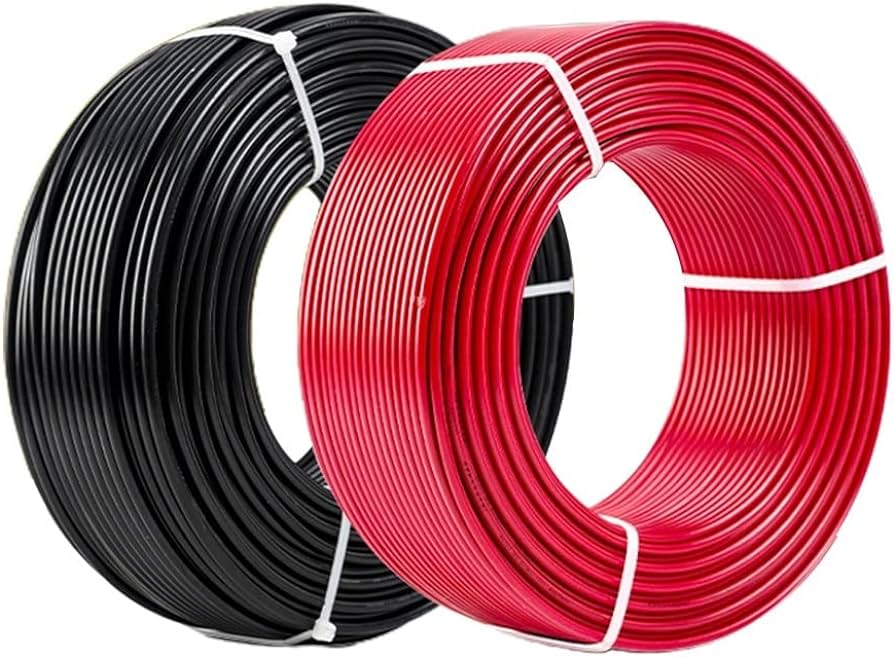

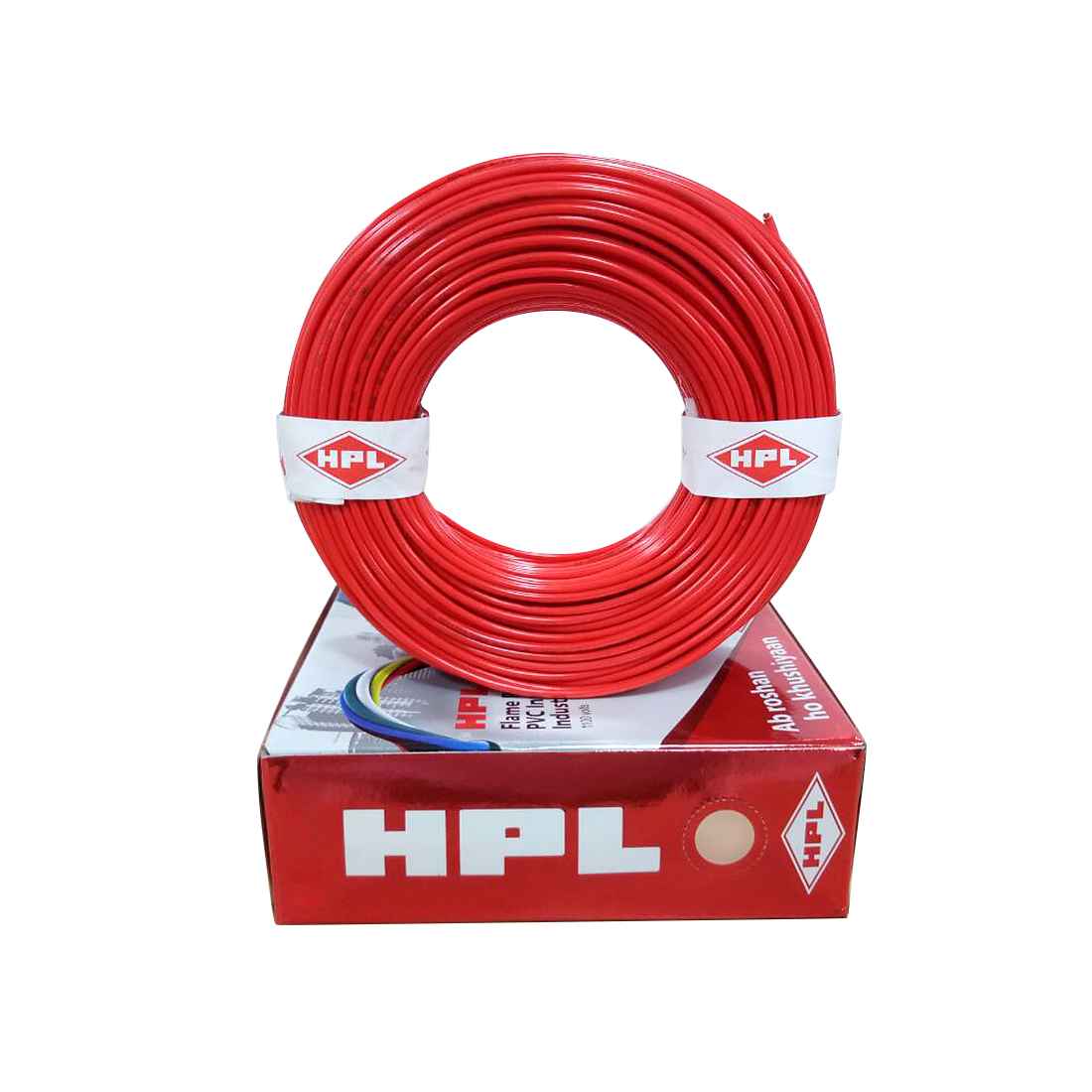

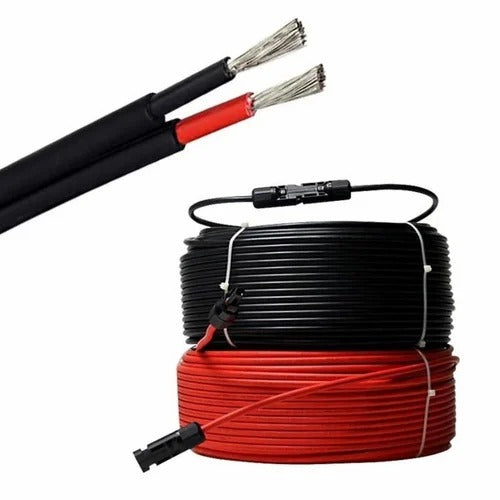

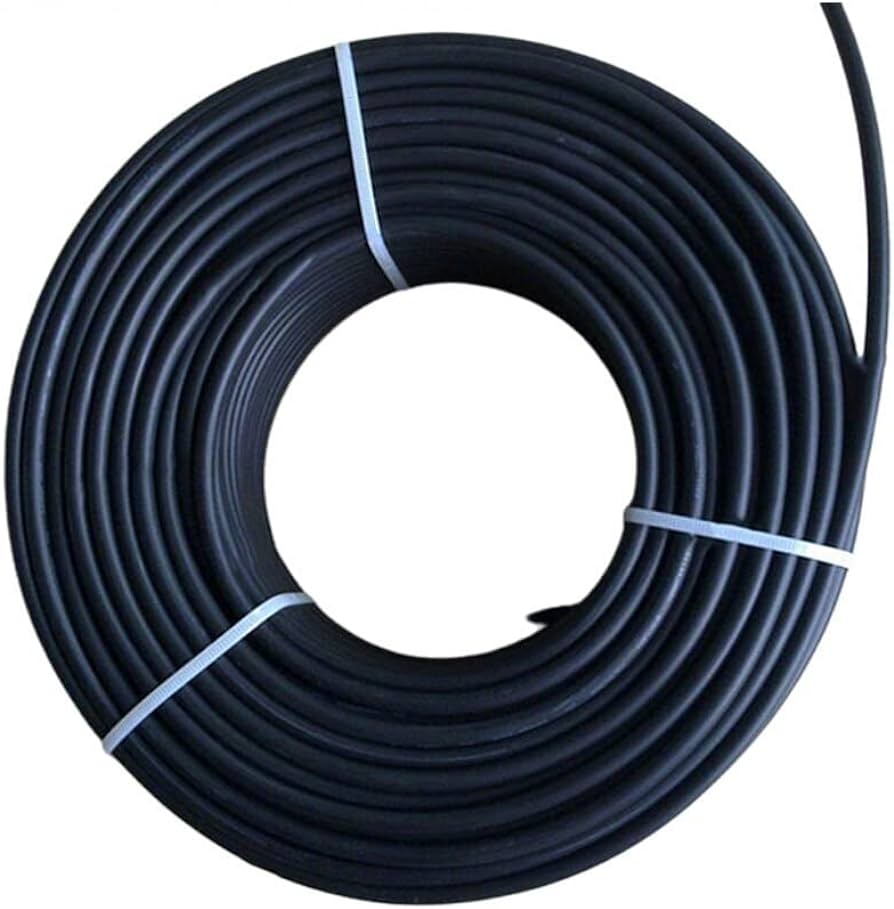

Solar DC CABLE 10 Sq.mm - 100 Meter Reel
Solar DC CABLE 10 Sq.mm - 100 Meter Reel
Regular price
Rs. 18,000.00
Regular price
Rs. 25,000.00
Sale price
Rs. 18,000.00
Unit price
per
Tax included.
Couldn't load pickup availability
Solar DC CABLE 10 Sq.mm
SOLAR CABLE is one of the most crucial parts. They are connected on DC side of the system, proper cable sizing and its quality ultimately decides the power delivered to the load and in turn efficiency of the entire system because undersized cable results into heating which may lead further up to 2 hazardous incidents like fire. solar cable has to function in open atmosphere over a long period, it has to withstand all environmental severities like UV radiation, rain, dust & dirt, temperature variations, humidity, insects and microbes etc. HPL Solar cables are made under stringent MNRE Parameters to deliver lasting performance throughout the lifetime of the PV System.
- UV Resistance: Full protection against ultraviolet rays
- Outdoor durability: resists extreme temperatures (-40°C to 120°C) and ozone resistant
- Halogen-free : Low Smoke Emission & Low Toxicity/Corrosively during fire
- Properties against fire : flame retardant, fire retardant
- Flexibility and stripping ability : for fast and easy installation
- Lifetime reliability : lasts up to 30 years even under tough external conditions
- Fully recyclable : in accordance with new environmental regulations
- Suitable to any connector types
- According to EN/IEC/IS
- Material: Zero Halogen & Cross-Linked Polyolefin Compound, Annealed Tinned Copper Conductor
Product Name: DC CABLE 10 Sq.mm
Brand: HPL
Product Type: Solar DC Cable
Range: Single core
Voltage Rating: 1.5(1.8) KV DC
High Voltage Test : 6.5 KV DC for 5 Minutes
Minimum Bending radius (mm) : 39
HR 105°C PVC Insulation Thickness-Nominal (mm): 1 mm
UV HR 105°C PVC Sheathing Thickness-Nominal (mm): 0.9 mm
Short circuit current rating for 1 sec. duration : 1.3
Max. Conductor D.C. Resistance at 20ºC (Ohm/Km): 1.95
Average Diameter of Conductor (mm): 3.9
Approx. Overall diameter of cable (mm): 7.7
In Box: 100 Meter Reel
Color: Red and Black
Weight: 120kg
Packing: Standard Packing
