Name: RR Kabel Firex LSOH EBXL Single Core 90 Meter
Brand: Spectra Energy
Price: 1499.0 INR
Availability: InStock

More Information Download Catalog

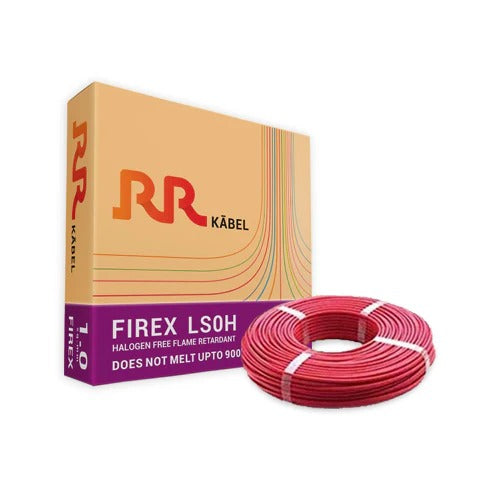

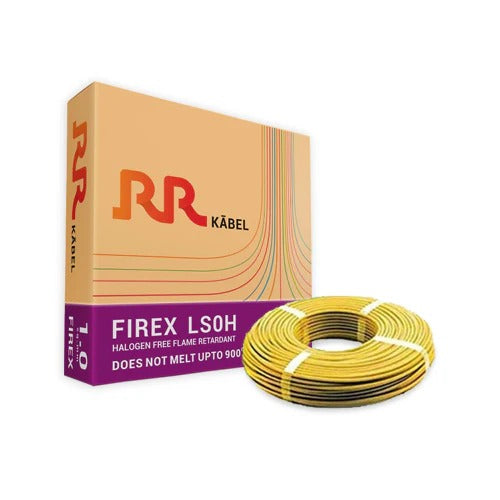

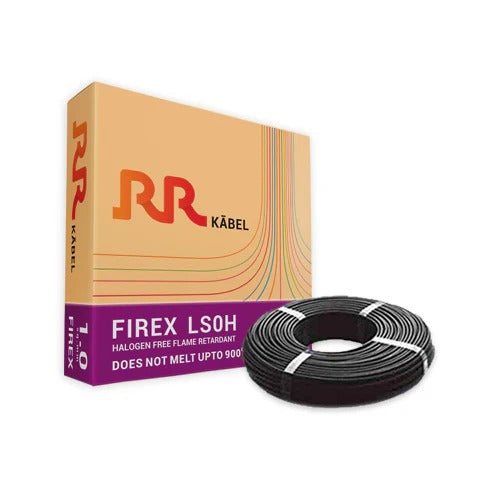

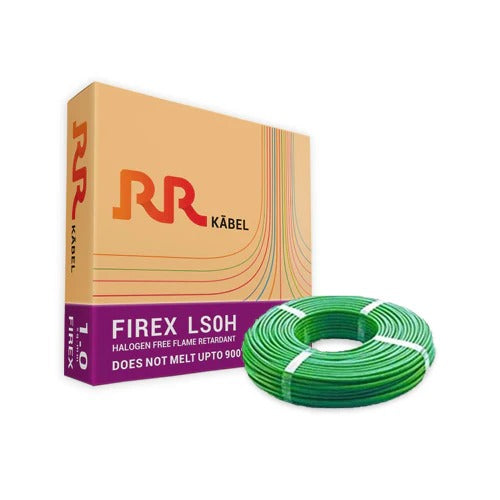

Firex LSOH EBXL Single Core 90 Meter

Firex LS0H-EBXL is ideal for fixed and protected installations in all kind of building infrastructure where fire protection is of utmost importance. It is best suited for all public / commercial buildings including Airports, Auditoriums, Hospitals, Hotels, Schools, Malls, Retail-Chain Establishments and all infrastructures having large foot falls. The high-performance, reliability and longevity offered by this product also makes it the best choice for all high-rise buildings (above 15 meters in height).

It does not melt up to 900°C
Temperature range: -25°C to +110°C
Max. short circuit temperature rating: 300°C
Chlorine Free: Non-toxic & Non-corrosive
Smoke emission is negligible & transparent
Excellent water resistance properties
Abrasion resistant
Weather resistant
Anti-Rodent & Anti-Termite
Offers extented service life
The victims trapped in fire do not suffocate and this facilitate fire fighting operations.
Self-extinguishing and flame retardant according to IS 10810 P – 61

Technical Data

Approvals: IS 17048 marked, FIA/TAC
Cable Code: XZ
Voltage Grade: Up to and including 1100V
Conductor: Strands of electrolytic annealed plain copper are multi-drawn for uniformity of resistance, dimension and flexibility.
Insulation: E-Beam Crosslinked HFI-XL 90 Halogen Free Flame Retardant (HFFR)
Colours: Green, Black, Red, Yellow, Blue, Grey, White
Marking: The cables are marked ‘FIREX LS0H-EBXL’
Packing: 90 mtrs. Coils packed in protective cartons.
