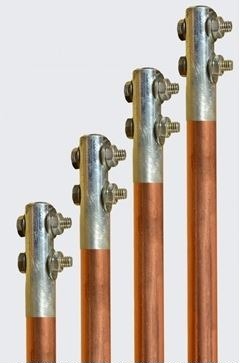

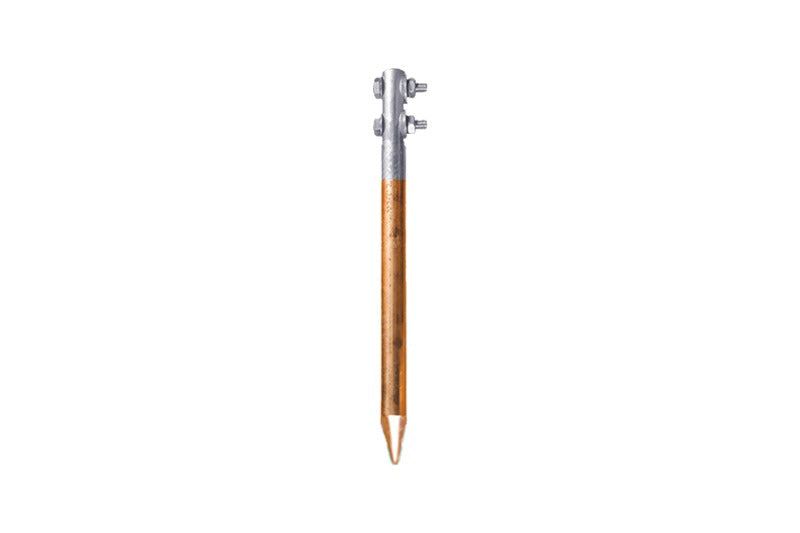

Nickel Sealed Copper Bonded Rod 17.2mm x 1.2Mtr x 250 Microns with Tinned & Pressed Terminals

Nickel Sealed Copper Bonded Rod 17.2mm dia. x 1.2Mtr Long x 250 Microns with Tinned & Pressed Terminals and SS Nut Bolts

  Electrolytic Grade Copper is Molecularly Bonded to Nickel-Sealed Low Carbon Steel Core having High Tensile Strength. Nickel Sealing is done for good Adhesion and Copper Coating will not crack when bent or driven. No part of steel is Exposed since Copper Coating is done after all Fabrication. The standard copper coating thickness is 250/100 microns.

   Copper bonded earthing rods are use for earthing. It will be used for Neutral earthing of electrical wiring systems. It also use for Body earthing of electrical appliance. customers can purchase copper bonded earthing strip with plates for connections.

Product Name: Copper Bonded Rod 17.2 mm x 1.2 Mtr  x 250 Microns Tinned & Pressed Terminals

Brand: Excel Erthings

Product Type: Copper Bonded Rod

Product Model:

Material: Low Carbon Steel (Tata/ Jindal/ Vizag)

Base Coating Material: Nickel

Coating Material: 99.9 % Pure Electrolytic Grade Copper Anode (Mitsubishi Luvata Japan)

Coating Thickness: 250 Microns

Diameter: 17.2mm

Length: 1.2 mtr

Tin Coatind on spikes: 250 Microns

Warranty:  Year

Usage/Application: Grounding Copper Rod

Dimension: 50(L) x 5(W) x 150(H) mm

Weight: 15 Kg

Country of Origin: India

Certificate: Not Applicable

Packing: Standard Packing

Delivery: 14 Days (Max)

Return Policy: Returns Not Accepted (Unless products has any Damage)

Minimum Order Quality (MOQ): (Pack of 1)

Available for Export Order: Yes
