ACDB BOX- 4-6 KW 1 MPPT 2 IN 2 OUT - 1 PHASE

ACDB BOX-4 KW 1 MPPT 2 IN 2 OUT 1 PHASE

Solar ACDB are an important part of SPV system to provide extra electric protection to the system during failures. AC distribution box provides protection in Load AC side during failures. ACDB incorporates MCB and MCCB’s etc. It has provision for surge protection also inside to ensure maximum protection to the sophisticated electronic equipment.

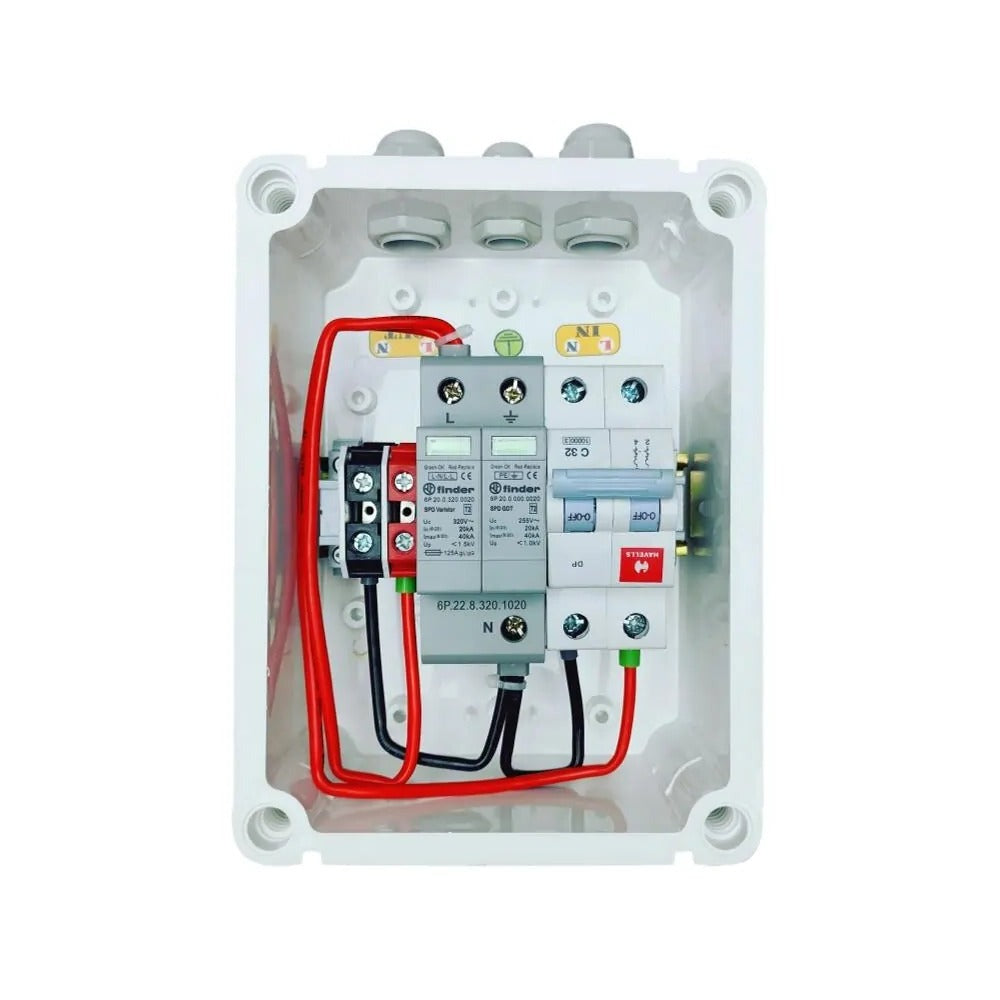

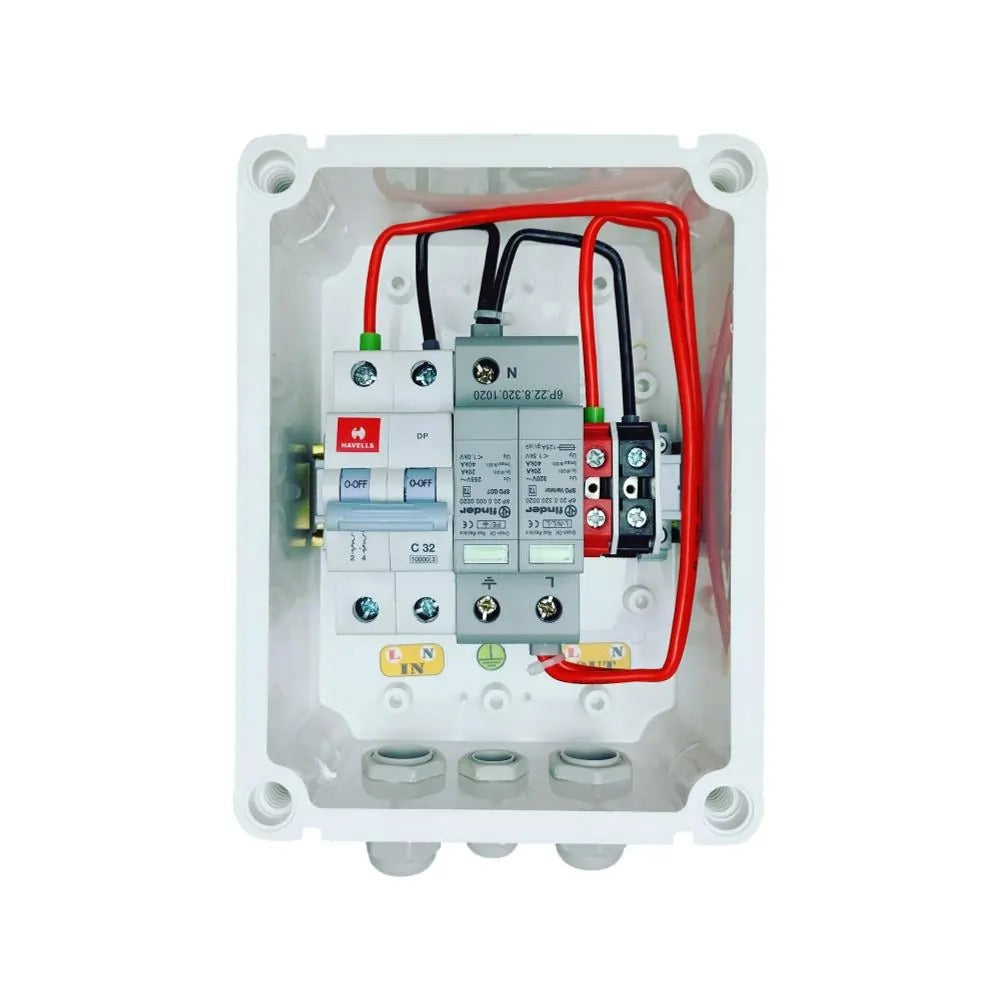

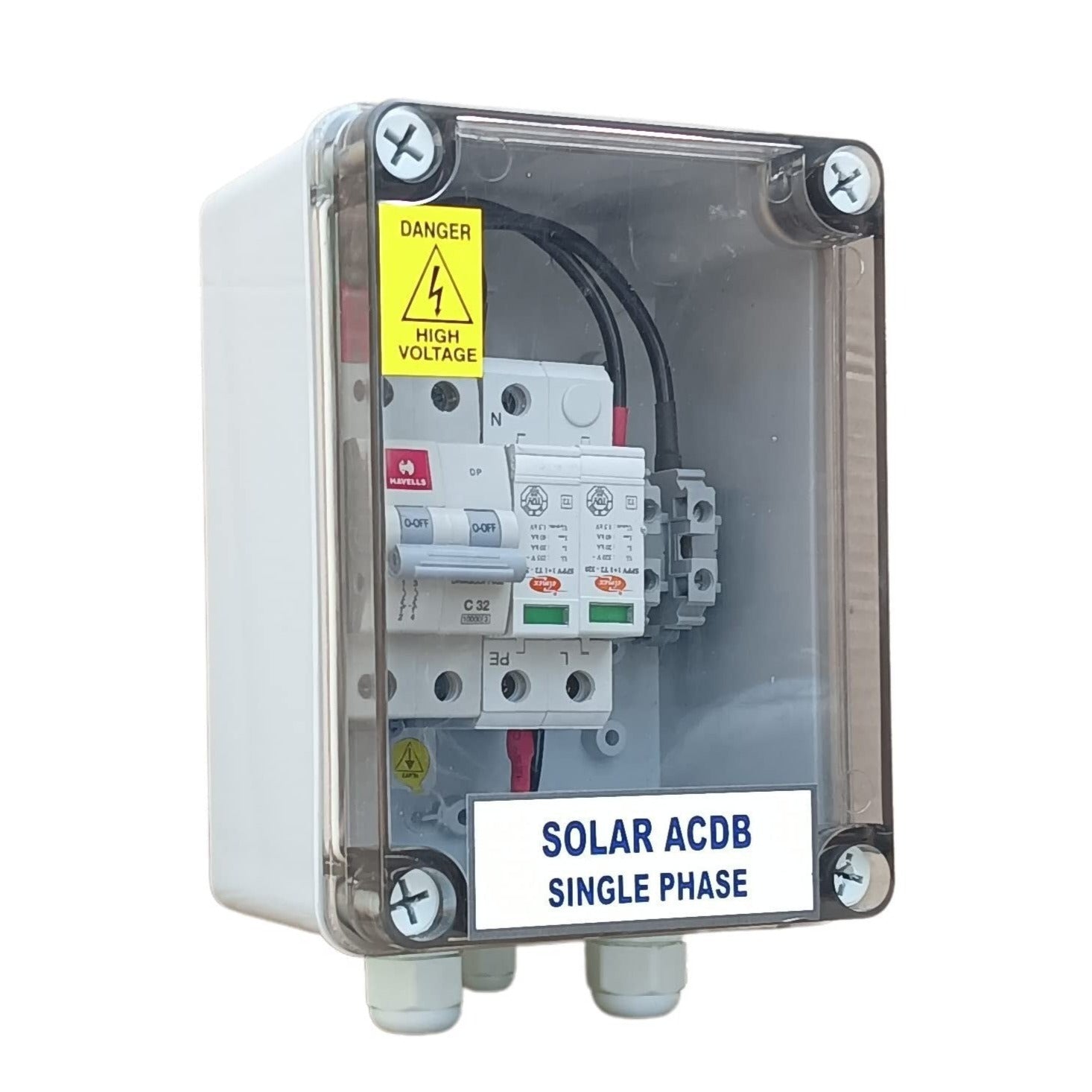

This is Single Phase Solar ACDB Box with is basically used after Solar Inverter for protection of surge occur from AC Side.

Solar ACDB for Three Phase Solar On-Grid/Off-Grid system. It is economical, safe and reliable product. It protects AC Side of Solar System from over current, short circuit and external Surges.

Benefits:

• Enclosures made of ABS, polycarbonate or CRCA.
• IP 54, 65, 67 rated enclosures
• Every component is of reputed make.
• SPD protection. MCB for distribution.
• MCCB disconnected for protection.
• Multifunction meter with current, voltage, power, frequency etc.

Product Name: ACDB BOX -4-6 KW 1 MPPT 2 IN 2 OUT- 1 PHASE

Brand: Spectra

Product Type: ACDB BOX

Product Model: 4-6 KW 1 MPPT 1 PHASE

Material: Copper, Polycarbonate

MPPT: 1

Phase: 1

Color: White Transparent

Power: 4-6 kw

Shape: Rectangular

Current: 16A to 32A

Is It Waterproof: Waterproof

Max.Voltage Rating: 1000V

Number of Strings: 2 in 2 Out

Warranty: 5 Years

Operating Conditions Temp: 40 Degree C

Usage/Application: Solar Application

Dimension: 180(L) x 130(W) x 100(H) mm

Weight: 3 Kg

Country of Origin: India

Certificate: Not Applicable

Packing: Standard Packing

Delivery: 14 Days (Max)

Return Policy: Returns Not Accepted (Unless products has any Damage)

Minimum Order Quality (MOQ): (Pack of 1)

Available for Export Order: Yes
